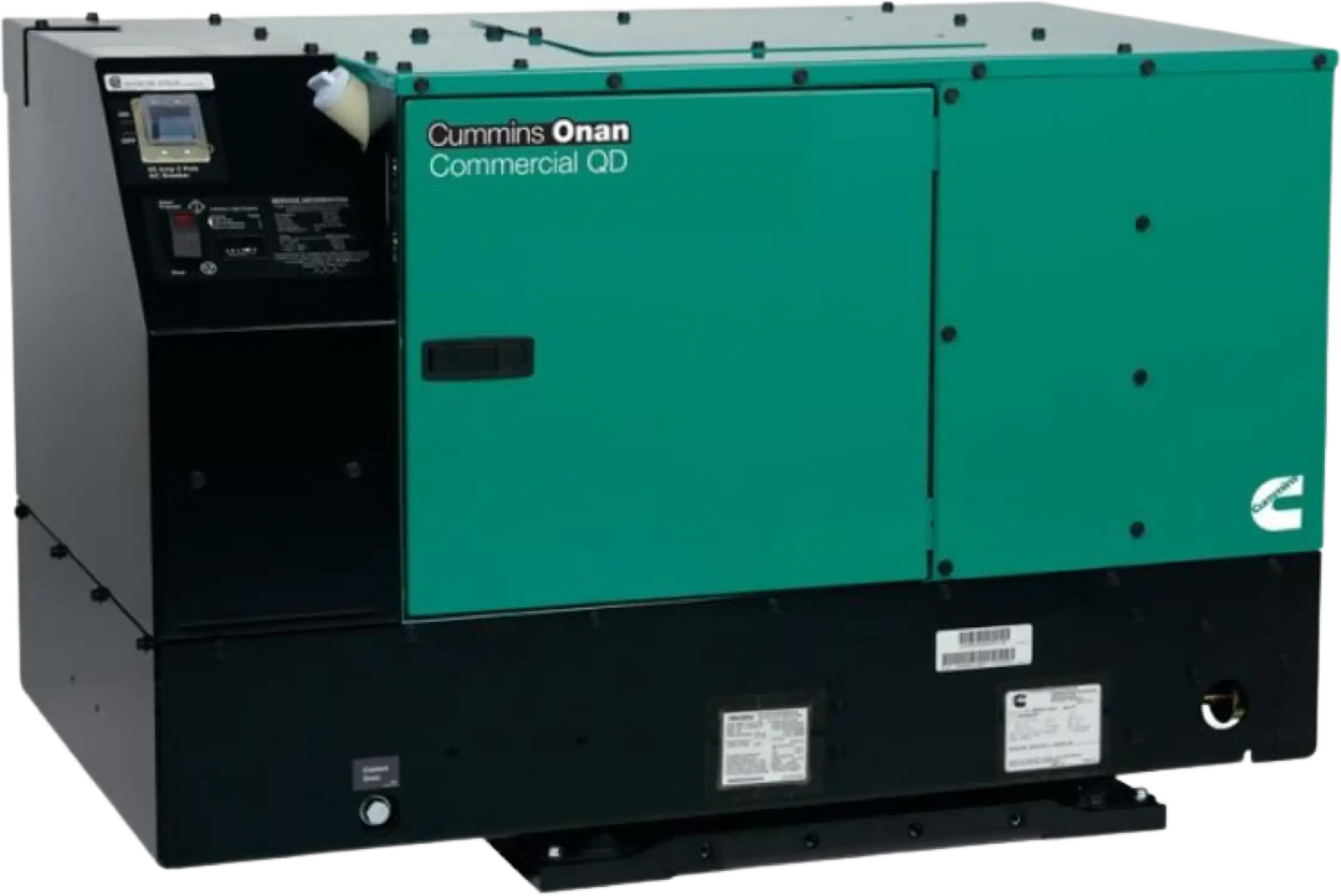

Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New

Cummins Onan QD Diesel powered 10000 watt RV generator. Computer controlled constant speed operation, Quiet Diesel performance for smaller RV’s. Special sound-controlling housing encloses the cooling system and muffler. Double isolation mounting system reduces vibration.

HIGHLIGHTS:
• 3 year factory warranty
• Brand new in box
• Diesel powered
• Authorized Cummins dealer

FEATURES:
• 10.0 kW Diesel Powered RV Generator (Model 11506)
• Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
• Runs 3 15,000 BTU AC units w/ 2500 additional watts available
• Cummins Onan 1499cc Liquid-Cooled Diesel Engine
• Automatic timed glow plugs for quick & easy starting
• Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
• Microprocessor Controlled
• Self-diagnostic capability to simplify troubleshooting
• High Quality, Pure Sine Wave Electrical Output
• Digital voltage regulator prevents damaging spikes
• Computer-Controlled Variable Speed Operation
• Matches engine speed to load demand, minimizes noise levels
• Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
• Lowers noise levels while providing cross-flow cooling
• Three-Point, Fully Focalized Mounting System
• Reduces vibration for quieter operation
• Stationary exhaust pipe connection point for easy installation
• Integrated Generator Set & Engine Control
• Provides user friendly controls and safety features
• 3 Year / 2000 Hour Warranty

SPECIFICATIONS:
Hour Meter: Yes
Fuel Consumption: .38-.78 gallons/hr
Circuit Breaker Size: 45 Amps
Min. Air Inlet – Front: 19″ x 12″
Min. Air Outlet – Bottom: 15″ x 16″
Grade Type: Recreational
Engine Brand: Cummins Onan
Starting System: 12-Volt Button Start
HP: 27 HP
CC: 1499 CC
Consumer Engine Warranty: 3 Years
Low Oil Alert/Shutdown: Yes
Product Category: Generator – RV
Weight: 767 Pounds
Consumer Warranty: 3 Years
Product Style: RV Generator
Product Length: 41.4 Inches
Product Width: 24.5 Inches
Product Height: 27 Inches
Additional Model Numbers: RV QD 10000, A055E835
Voltage: 120/240 Single-Phase
Frequency: 60 Hertz
Alternator: Brush
Auto Voltage Regulation: Yes
Rated Watts: 10000 Watts
Fuel Type: Diesel
Rated Amps: 41.7 Amps
Diesel Fuel Consumption @ 50% Load: .54 gallons/hr
Decibel Rating @ 3m: 70
Idle Control: Yes
PACKAGE CONTENTS: Cummins Onan QD 10000 Diesel Generator, User’s manual
