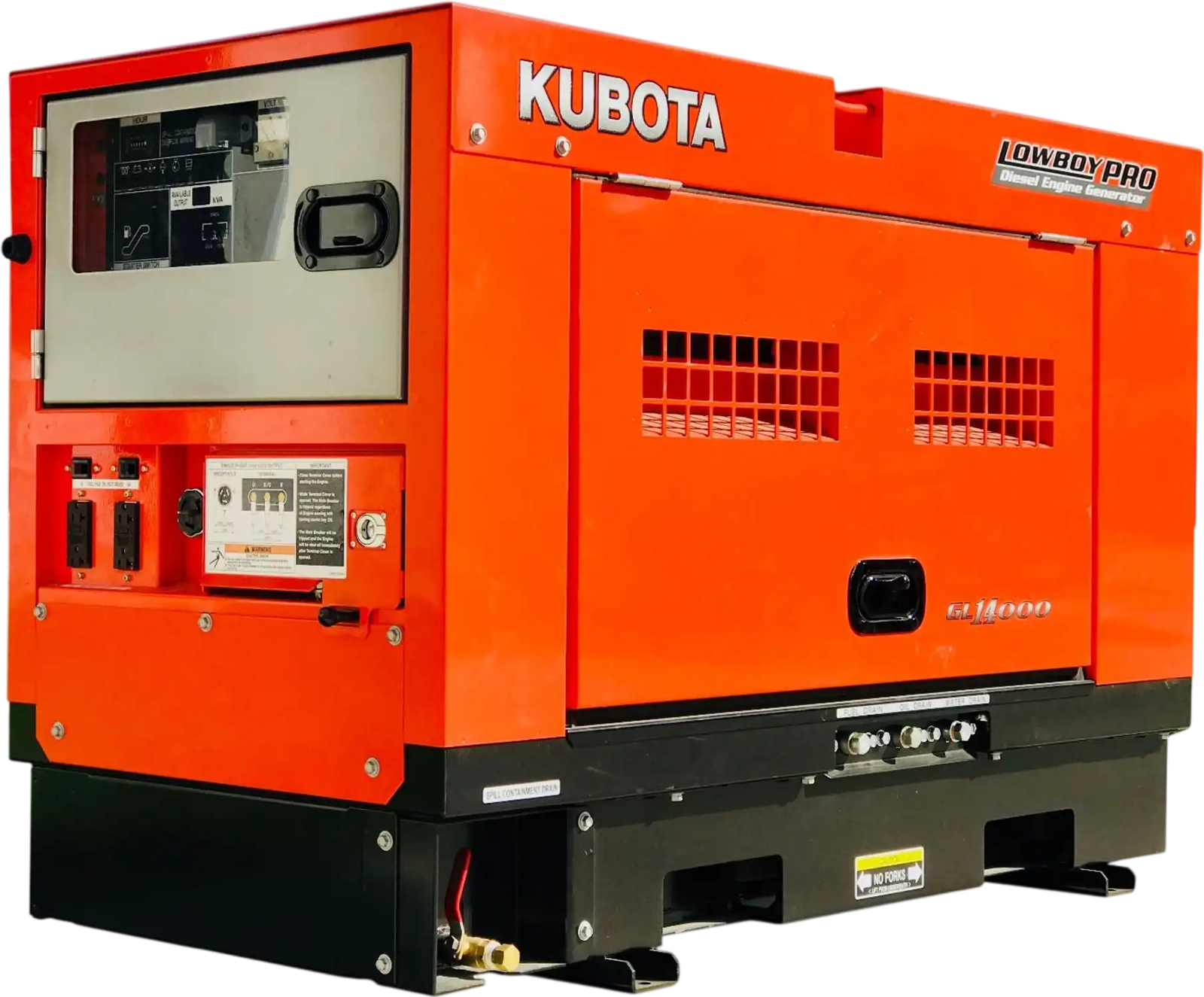

Kubota GL14000 Generator 14kW Diesel Liquid Cooled 120/240V with Receptacles and Output Terminals New

The Kubota GL14000 is a diesel generator designed to deliver dependable power for demanding applications. It offers 12 kVA prime output and 14 kVA standby output with a compact low-profile design for easier placement. Its direct-coupled generator and engine help provide reliable power with minimal loss, while one-side maintenance simplifies service access. Built-in safety systems and standard ATS connection capability make it suitable for both mobile and stationary use. This unit features receptacles and output terminals.

HIGHLIGHTS:
• Brand new
• 3 year / 3000 hour warranty
• Manufacturer direct shipping from TX
• Authorized Kubota dealer

PLUG TYPES:
• ×2 20 Amp GFCI Standard Receptacle (20A-GFCI)
• ×1 125v/250v 50 Amp Twist Lock (CS6369)
• ×2 20 Amp GFCI Standard Receptacle (20A-GFCI)
• ×1 125v/250v 50 Amp Twist Lock (CS6369)

FEATURES:
• Generator and engine are direct-coupled to ensure a more reliable power supply with minimum power loss.
• Large-capacity fuel tank (36.4L / 9.62 U.S gal.) enables longer continuous operation on a single tank.
• One-side maintenance to reduce the operator’s work load.
• Larger-capacity oil pan employed to stretch the oil change intervals up to 200 operating hours.
• Protective covers on all moving parts (for the engine’s cooling fan and the generator).
• Automatically shuts the engine down in case the water temperature rises excessively or the oil pressure drops below a safe level.
• Double element air cleaners are standard equipment. Ideal for heavy-duty application in dusty environments.
• An access terminal to connect to the ATS (Automatic Transfer Switches) is standard equipment. Applicable for stationary use as well.

SPECIFICATIONS:
Model: GL14000
Frequency: 60 Hz
Prime Output: 12 kVA
Standby Output: 14 kVA
Rated Voltage: 240/120 V
Rated Current: 50/100 A
Phase / Wire: 1-3
Power Factor: 1.0
Output Terminal Block: Single phase – 3 wires U-N/G-W
Terminal Size: M8
Engine Manufacturer / Model: Kubota / D902
Engine Speed: 3600 RPM
Emission Standard: EPA Tier 4 Final, CARB
Control Panel: Voltmeter, Ammeter, Frequency Meter
Fuel Consumption 100% Load: 4.9 L/hr (1.29 gal/hr)
Fuel Consumption 50% Load: 3.2 L/hr (0.85 gal/hr)
Fuel Tank Capacity Net Volume: 36.4 L (9.62 gal)
Continuous Operating Hours 100% Load: 7.0 hr
Continuous Operating Hours 50% Load: 11.0 hr
Dimensions: 51.57 x 25.2 x 35.24″
Dry Weight: 904 lbs
Net Weight: 1003 lbs
Noise Level No Load / Rated Operation: 65 / 67 dB at 7 m
PACKAGE CONTENTS: Kubota GL14000 Generator, User Manual
