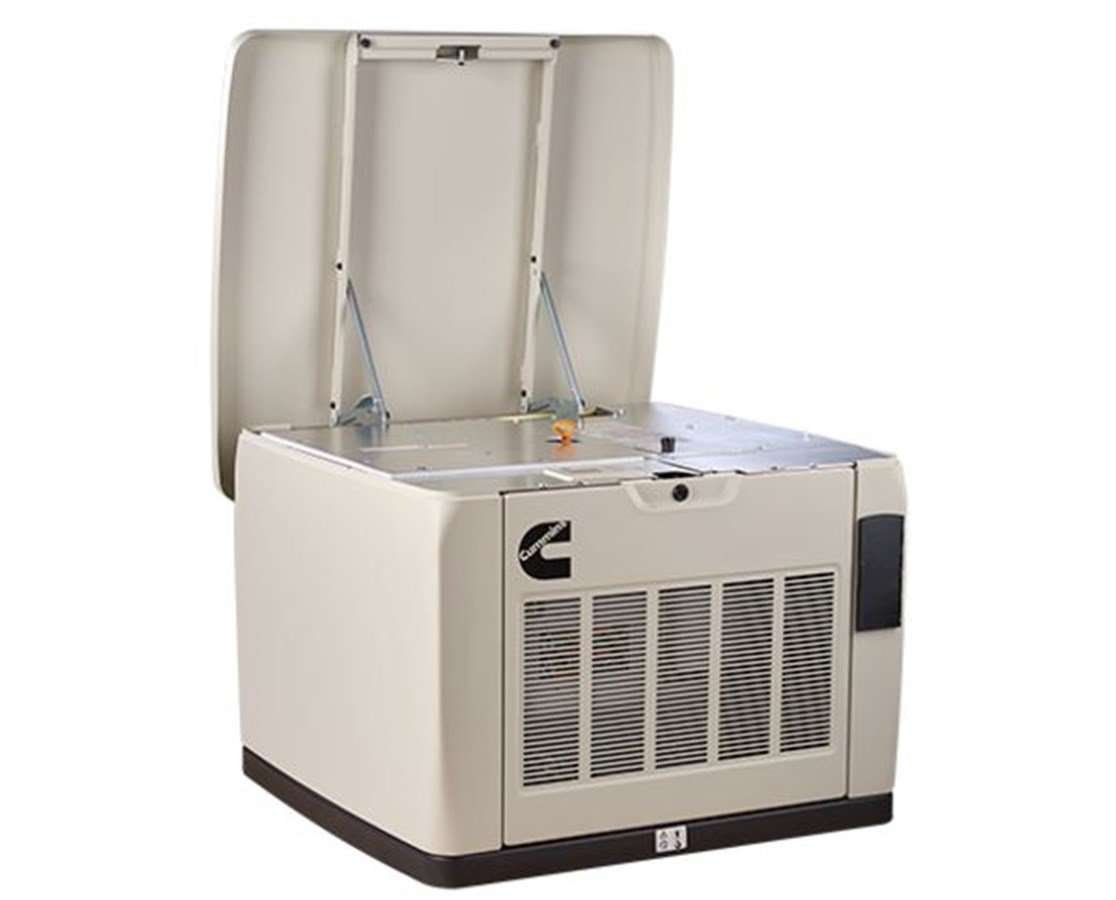

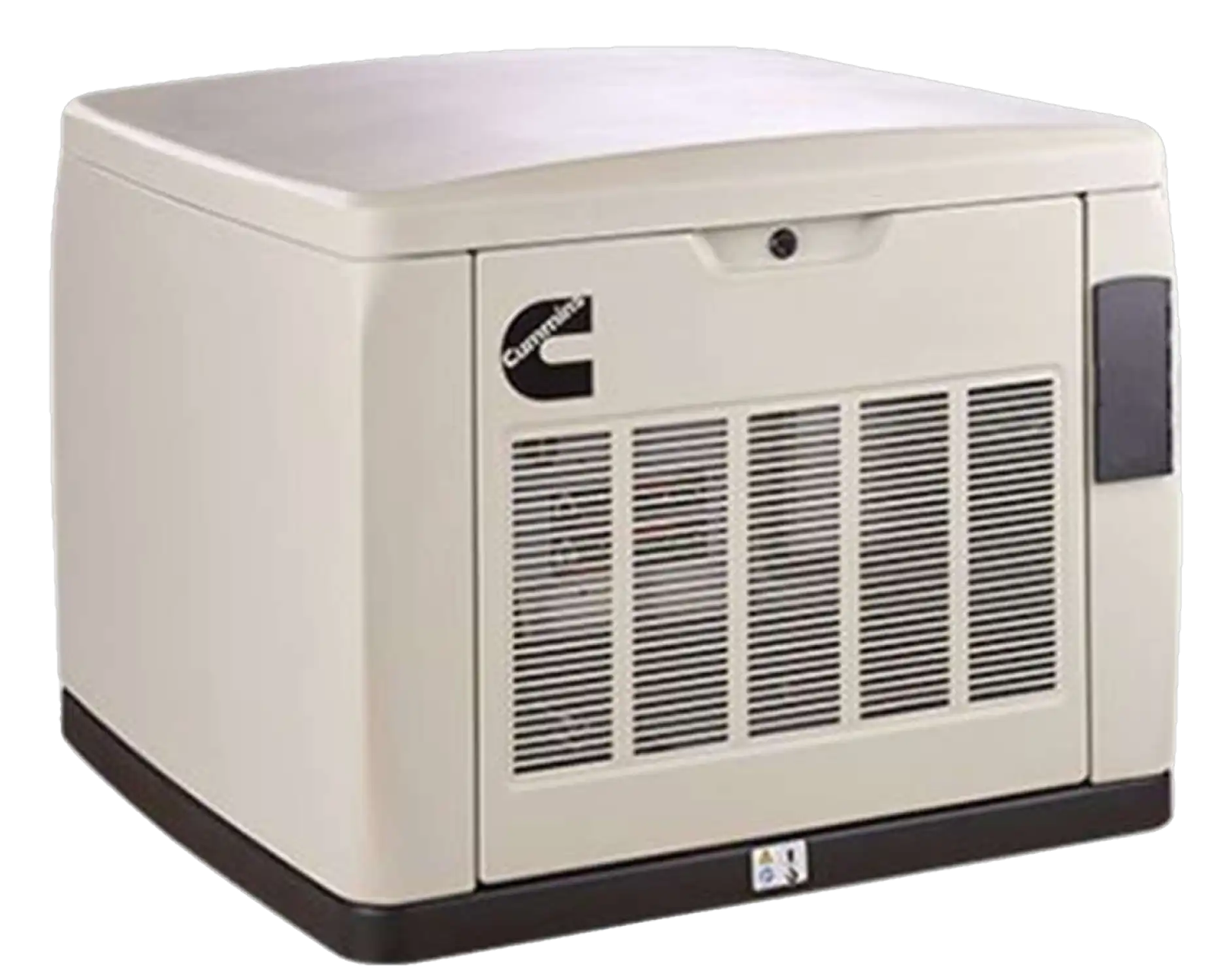

The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is the perfect power backup during an outage. It is powered by a 999 cc engine which runs from 13 to 20 kilowatts both on natural or propane gas. The engine has a total harmonic distortion of 5% and has the ability to start and run a 5-ton A/C under full preload. It features an air-cooled cooling system with extremely quiet operation at a 65-decibel rating. This generator has the “Crank-Only” mode which reduces wear and tear while saving fuel and reducing noise. This can operate in cold weather out of the box. Application & Warranty Notice: “For use and warranted in EPA Stationary Emergency application. Not EPA certified or warranted for non-emergency, off-grid or prime power applications.”
HIGHLIGHTS:
• 5 year factory warranty
• Brand new in box
• Works with Liquid Propane or Natural Gas
• Authorized Cummins dealer
FEATURES:
• Weather Protective Aluminum/Steel Sound Enclosure
• Can be installed* within 18″ of a build (NFPA 37) – Always check local building codes
• Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
• 999cc Cummins Air-Cooled V-Twin OHV Engine
• Field-selectable, runs on ultra efficient natural gas or LP (vapor)
• Low oil pressure shutdown provides added safety and longevity
• Operates in cold weather with performance down to 0 °F
• < 5% THD (Total Harmonic Distortion)
• Clean power that won't damage your electronic devices
• Patented "Crank Only" Exercise Mode
• Provides diagnostics without running engine for less wear and lower fuel costs
• Allows user to select time, date and frequency of exercise
• Load Management Capability (Requires Load Management Kit - Sold Separately)
• Maximizes generator power by intelligently managing up to 4 electrical loads
SPECIFICATIONS:
Manufacturer's Warranty: 5 Yr Consumer Limited
Rated Watts: 13,000
Phase: Single (120/240v)
Start Type: Automatic w/ transfer switch (not included)
Engine: Cummins Onan
Engine Displacement: 999cc
Decibel Level @ 7m: 65db
Fuel Consumption (NG): 253 cu.ft/hr (full load) 195 cu.ft/hr (half load)
Fuel Consumption (LP): 2.3 gal/hr (full load) 1.6 gal/hr (half load)
Fuel Type: Liquid Propane or Natural Gas
Low Oil Shutdown: Yes
Battery Included: No
Battery Required: Yes
Dimensions L x W x H (in.): 34.1 x 36 x 27.3
Product Weight (lbs.): 479 lbs.
PACKAGE CONTENTS: 13kw generator, Aluminum Enclosure
