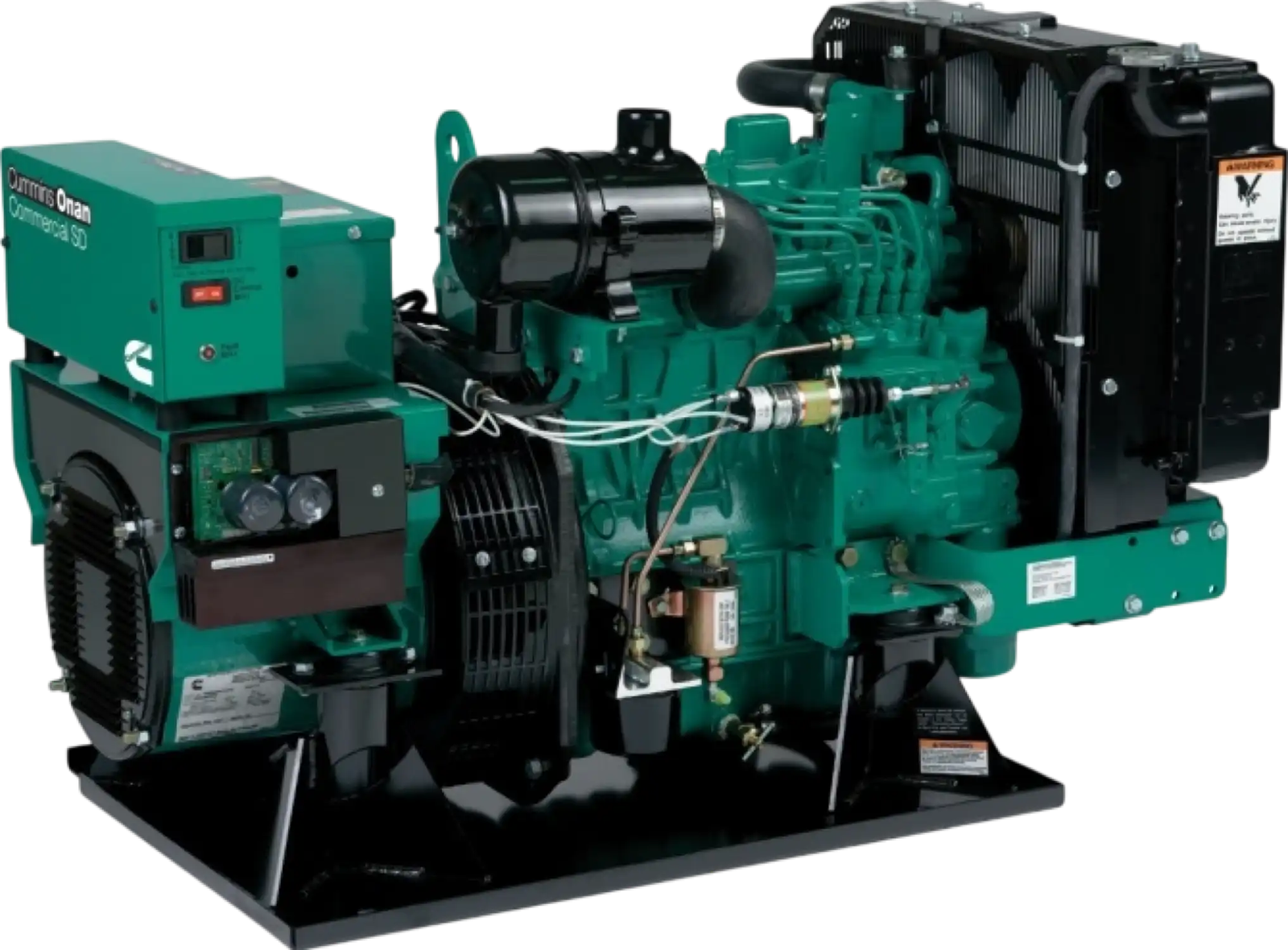

Cummins Onan SD 7500 7.5kW Generator 7.5HDKAL-3 Commercial Mobile Diesel 3-Phase 120V/240V New

The Cummins Onan Standard Diesel Series of generators are designed for tough commercial applications that do not require a housed product. Designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete package. All standard diesel generators operate at low speed for long life, and can be used in both open and compartment-type applications. Three-phase models are 12-lead reconnectable for a broad range of voltage applications.

HIGHLIGHTS:
• 2 year factory warranty
• Brand new in box
• Diesel powered
• Authorized Cummins dealer

FEATURES:
• Smooth operation – focalized mounting system with 4-point vibration isolation
• Glow plugs for reliable all-weather starting
• Installation flexibility with remountable 90° exhaust elbow, remountable DC control and multiple oil fill/check points
• Cross-flow radiator for increased cooling efficiency
• Water resistant controls
• Configured 12-lead reconnectable for a broad range of voltage applications
• 4-cycle, liquid-cooled diesel engine
• Low harmonic distortion for SCR loads
• Electric fuel pump
• Base pan for drip control

SPECIFICATIONS:
Item Number: A060C031
Model Number: 7.5HDKAL-3
Model Name: SD 7.5
Fuel Type: Diesel
Voltage: 120V/240V, Three-Phase
Frequency: 60 Hz
RPM: 1800
Fan: Pusher
Rated Watts: 7500 Watts
Fuel Consumption @ 50% Load: 0.56 gallons/hr
Fuel Consumption @ 100% Load: 0.9 gallons/hr
Rated Amps: 22.6 Amps
Decibel Rating @ 10 ft. (3m): 76 dB(A)
Circuit Breaker Size: 3-pole, kit
Engine Brand: Kubota
Starting System: Remote, 12-Volt, 1.2kW starter
Displacement: 1124 CC
Dimensions (L x W x H): 37.3″ x 21″ x 23.9″
Weight: 490 lbs.
Ship Weight: 530 lbs.
PACKAGE CONTENTS: Cummins Onan SD 7.5kW Diesel Generator, User Manual
