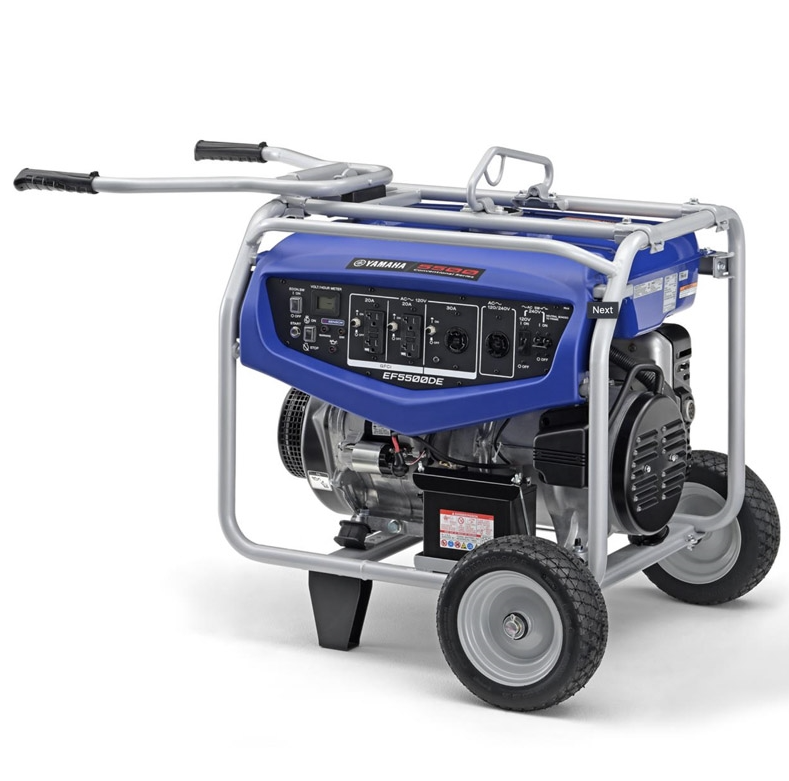

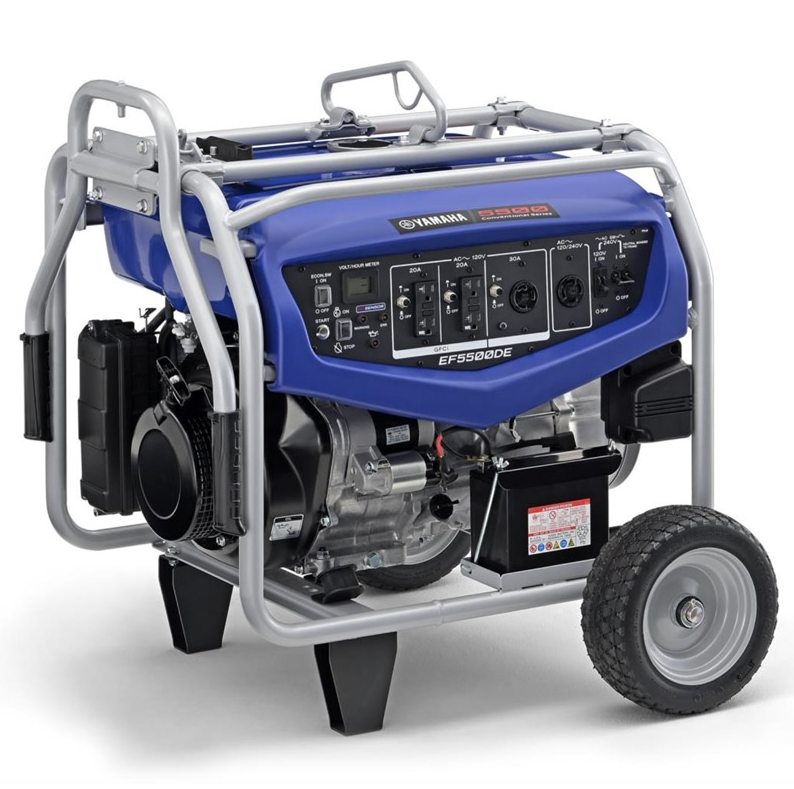

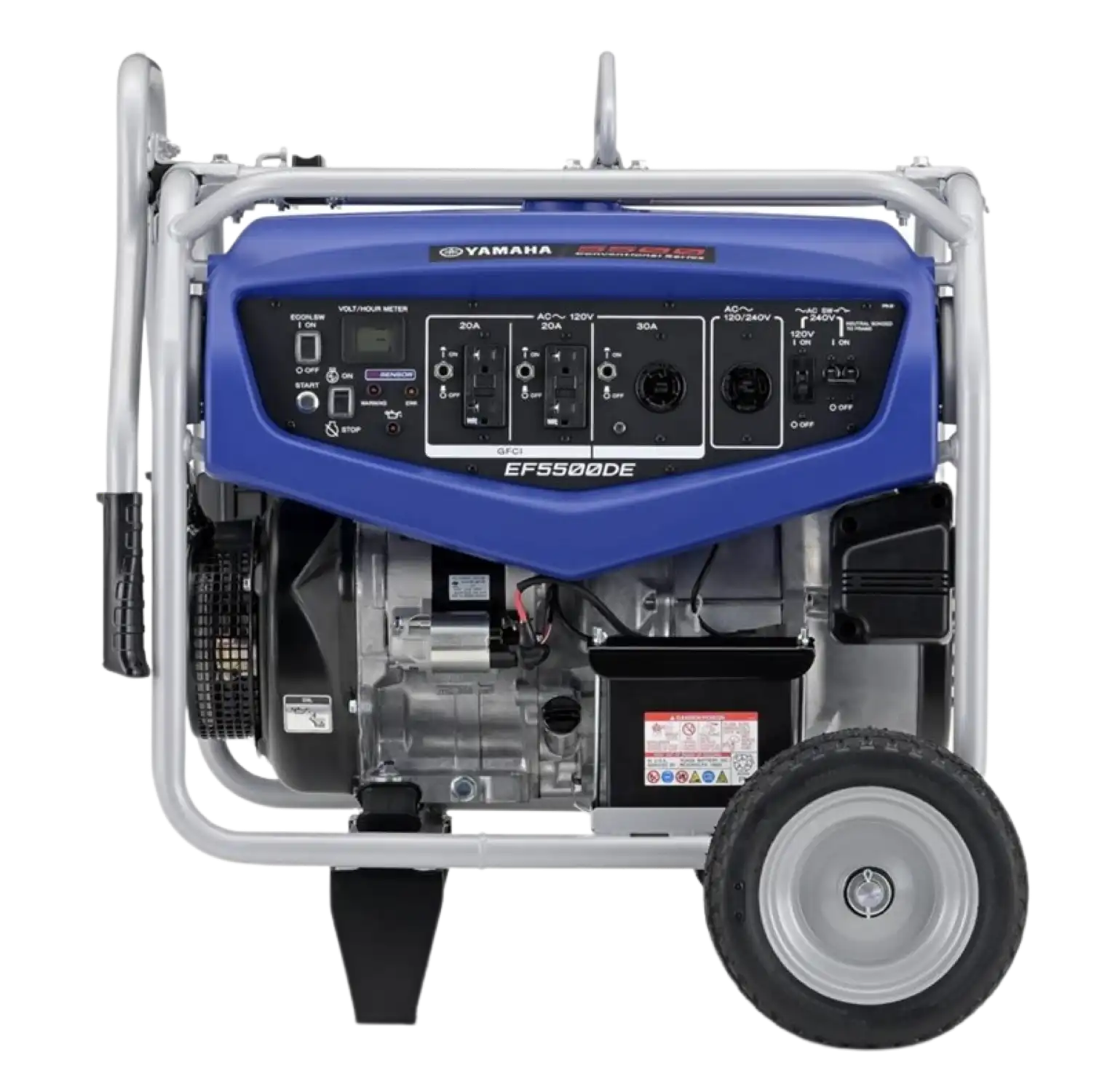

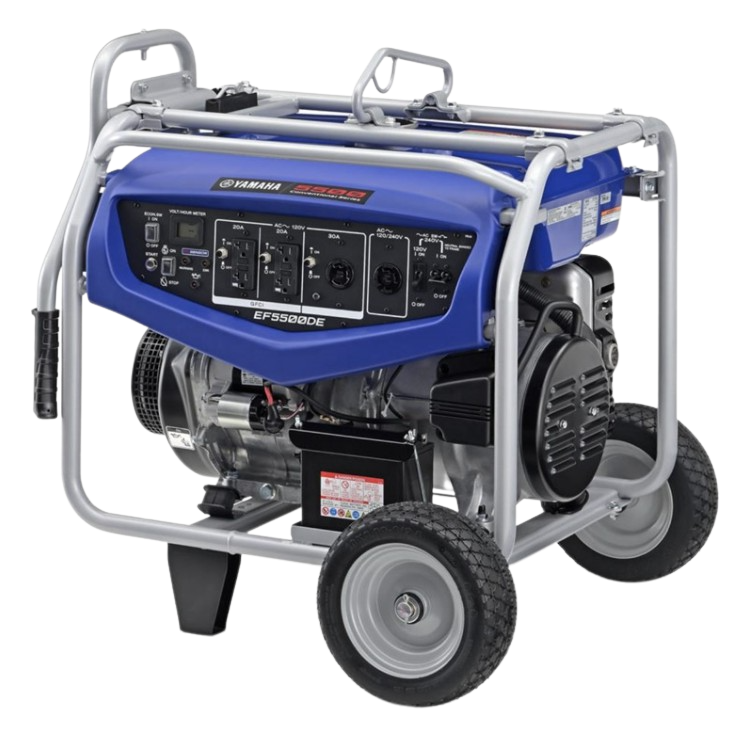

The EF5500DE uses a 358cc OHV engine with electric start that combines 5500 watts maximum AC output with outstanding fuel efficiency. Allows 9 hours of continuous operation on a single tank of fuel.
HIGHLIGHTS:
• Brand new in box
• Ships from TX
• Fast shipping
• 3 year limited factory warranty
• Authorized Yamaha dealer

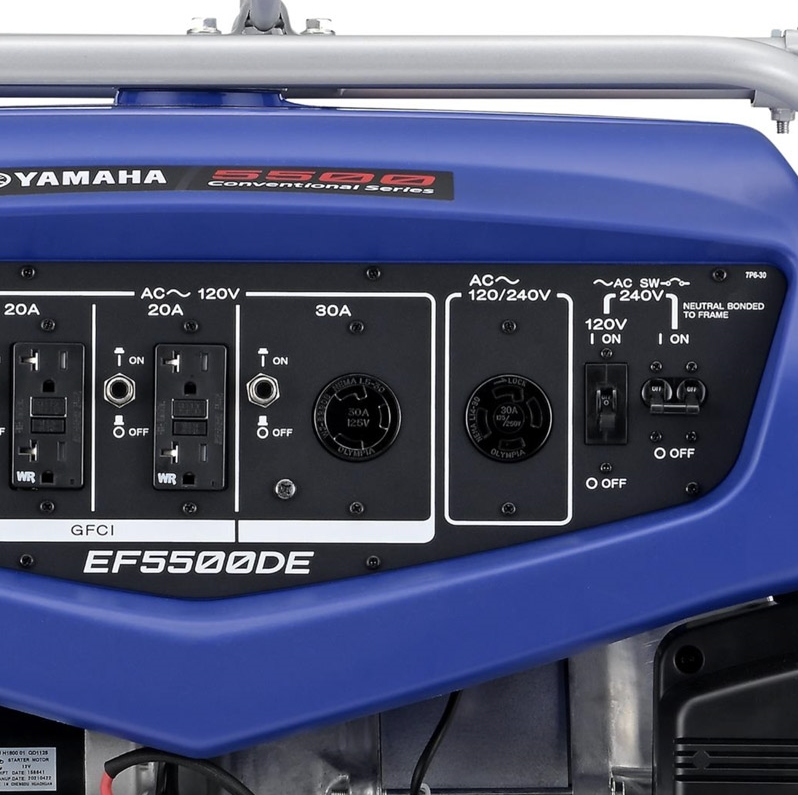

PLUG TYPES:
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120v 30 Amp Twist Lock (L5-30R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120v 30 Amp Twist Lock (L5-30R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
FEATURES:
• Reduced Price / More Wattage – Great value with the same legendary quality and performance.
• OHV engine (overhead valve) – Improved efficiency, increased reliability, quieter operation.
• Standard Accessories – Comes standard with wheels, fold-down/locking handles and battery.
• Warranty – 3 year industrial and residential warranty.
• Electric Start & Auto Choke – Effortless push-button starting.

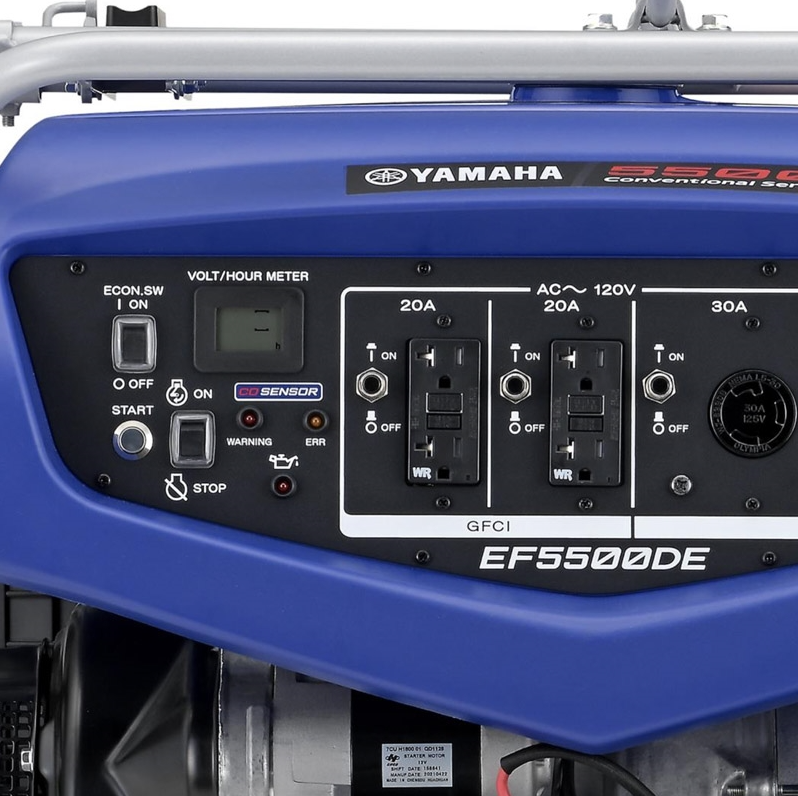

• Digital Hour Meter / Digital Volt Meter – Displays total run time accumulation for servicing or refueling interval and indicates the voltage output.
• Rugged Design – Full roll cage protection for heavy jobs.
• Lifting Eye – Convenient for hoisting and security.
• Dual Voltage – Full power, full time 120/240 dual voltage perfect for job site or home backup.
• GFCI – Ground Fault Circuit Interruption senses leaks to ground to reduce risk of electric shock.
• Fuel Gauge – Easy monitoring of fuel level.
• CO Sensor – Engine shuts off if a high level of carbon monoxide is detected.
SPECIFICATIONS:
Rated AC Current / Max AC Current: 36.0 amps /44.0 amps @120V | 18.75 amps/22.9 amps @ 240V
Continuous Operation at Rated Load: 9.0 Hrs.
Model / Model Code: EF5500DE
Warranty: 3 Year Limited Warranty
Dimensions (length/width/height): 29.1″ x 28.4″ x 31.5″Dry Weight
Engine Type: OHV
Displacement: 358cc
Capacity: 6.9 Gallons
Fuel Type: Unleaded Regular
Cooling Type: Air Cooled
Generator Type: Brushless
Maximum AC Output: 5500 Watts
Rated AC Output: 4500 Watts
Noise Level: 74.1 DBA
PACKAGE CONTENTS: Generator with CO sensor, Wheels, Fold-down/locking handles, Battery, User’s Manual
