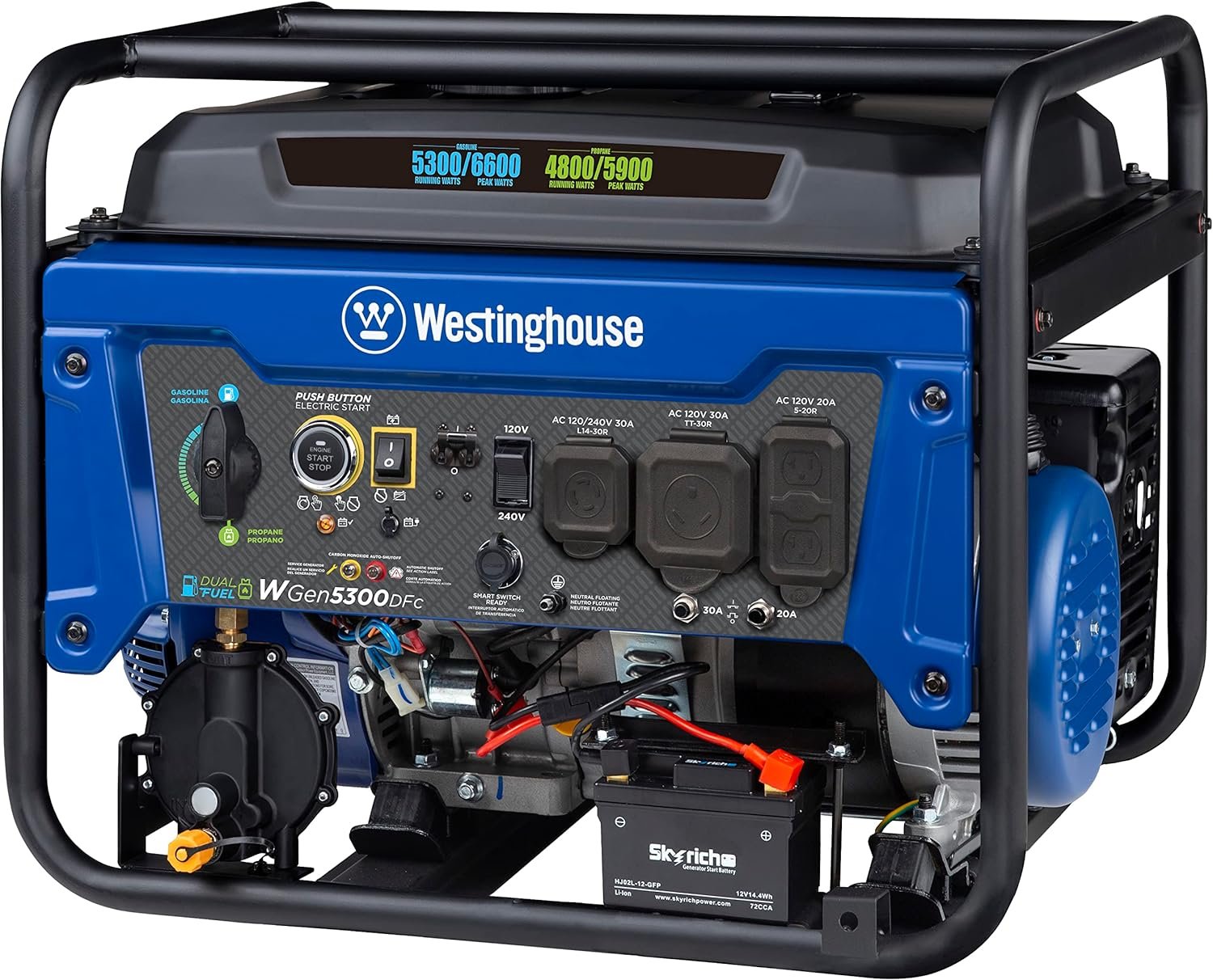

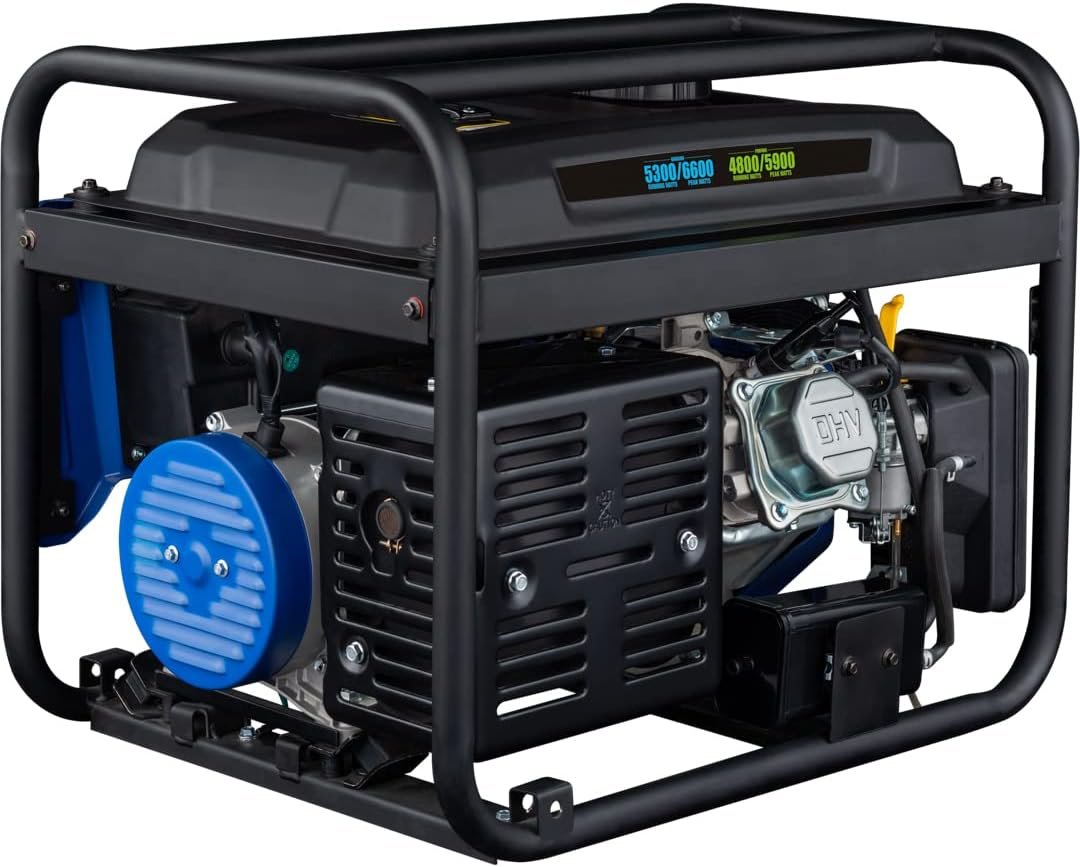

The Westinghouse WGen5300DFc is a versatile solution for all your power needs from your home to your RV when you’re looking for a dependable backup power supply. With dual fuel ability, this generator offers versatility by running on either gas or propane (LPG). The WGen5300DFc produces 6,600 peak watts and 5,300 running watts with a powerful 274cc 4-Stroke OHV Westinghouse Engine constructed for durability. Running for up to 14.5 hours on a 4.7 gal. (18L) tank of gas, it’s conveniently equipped with a built-in fuel gauge, and Push-Button Electric Start with a remote start key fob. *Not for Sale in California*
HIGHLIGHTS:
• Brand new in box
• 3 year limited factory warranty
• Remote start
• Manufacturer direct shipping from CA
• Fast shipping
• Authorized Westinghouse dealer
PLUG TYPES:
• ×2 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v 30 Amp RV Ready (TT-30R)
• ×2 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v 30 Amp RV Ready (TT-30R)
FEATURES:
• The L14-30R outlet is Transfer Switch Ready to supply total household power which eliminates the hassle for annoying extension cords or power strips
• Combined with an RV Ready TT-30R outlet, you can ensure your recreation vehicle or home is ready to go for air conditioners, refrigerators, sump pumps, and home necessities

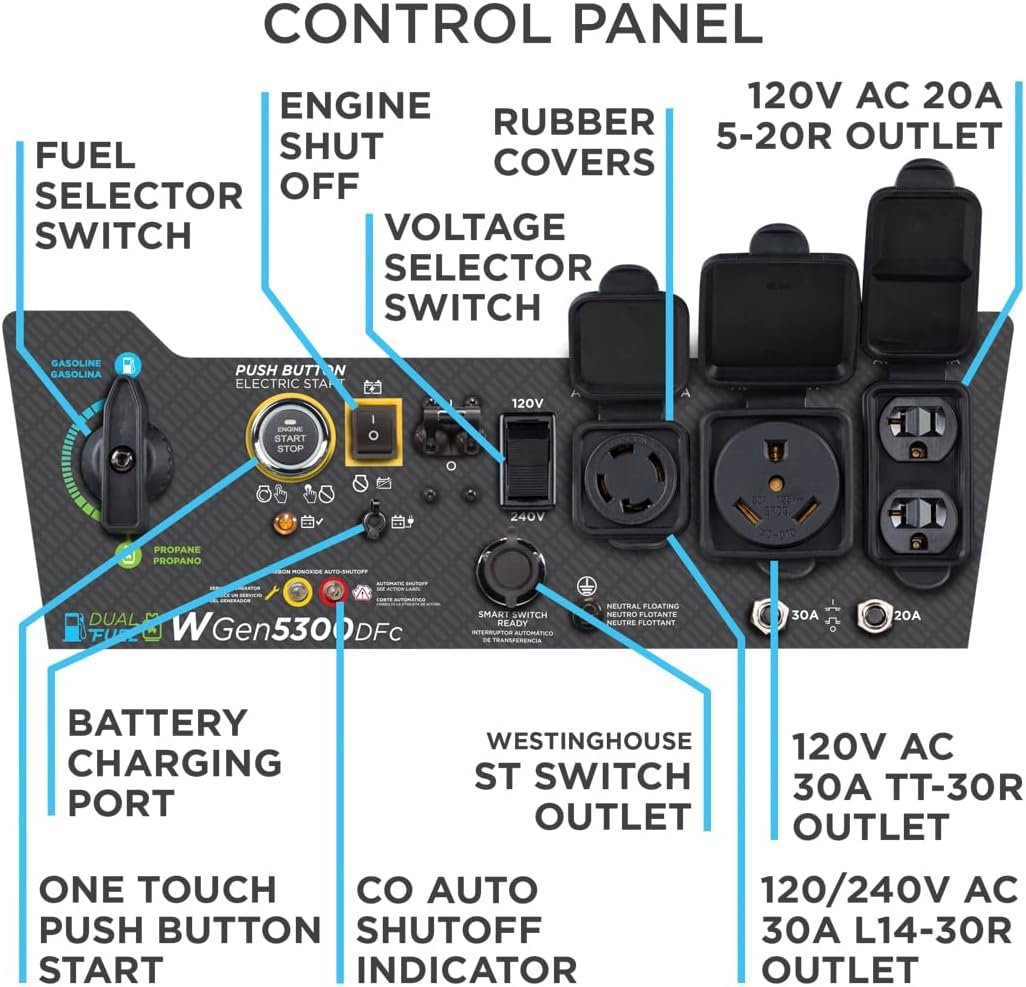

• The intuitive control panel features an adjustable 120/240 Volt Selector Switch to draw more power with added flexibility for higher voltage appliances like well pumps
• The WGen5300DFc features automatic low oil and carbon monoxide (CO) shutdown, voltage regulation, and overload protection
• 3-Year Limited Warranty
• Perfect as a backup power source at home or portable power solution for RVs
• 6,600 peak watts, 5,300 running watts (gasoline); 5,900 peak watts, 4,800 running watts (propane)
• Runs for up to 14.5 hours on 4.7 gal. fuel tank with built-in fuel gauge
• Powered by a tough 274cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve
• Push-Button Electric Start pairs with remote start key fob and is backed by emergency recoil start
• Dual fuel operation easily switches from gas to propane without shutting off unit
• Safe and convenient with automatic low oil and carbon monoxide (CO) shutdown, automatic voltage regulation, and overload protection
• Weighing 135.6 lbs. with a compact hardened steel frame and as low as 68 dBA operating volume
• All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor
SPECIFICATIONS:
Gasoline Peak Watts: 6600
Gasoline Running Watts: 5300
Propane Peak Watts: 5900
Propane Running Watts: 4800
Gasoline Peak Amps: 27.5A – 240V 55A – 120V
Gasoline Running Amps: 22A – 240V 44A – 120V
Propane Peak Amps: 24.6A – 240V 49A – 120V
Propane Running Amps: 20A – 240V 40A – 120V
AC Voltage: 120/240V
AC Frequency: 60 Hz
Outlets: 1 120V Duplex 5-20R 1 120/240V L14-30R 1 120V TT-30R ST Switch
Total Harmonic Distortion: ≤23%
GFCI Outlets: No
Outlet Covers: Yes
Transfer Switch Ready: Yes
RV Ready: Yes
ST Switch Ready: Yes
Noise Level: 68 dBA
Fuel Gauge: Yes
Fuel Tank Capacity: 4.7 gal. (18 L)
Gasoline Run Time @ 25%: 14.5 hrs.
Gasoline Run Time @ 50%: 11 hrs.
Propane Run Time @ 50%: 9 hrs.
Starter Type: Electric, Remote, Recoil
Choke Type: Automatic
Engine Displacement: 274cc
Engine Type: OHV 4 Stroke
Oil Capacity: 20.3 oz. (0.6 qt.)
Engine Oil Type: 10W30
Automatic Low Oil Shutdown: Yes
Carbon Monoxide (CO) Sensor: Yes
Overload Protection: Yes
CARB Compliant: No
Grounding System: Floating Neutral
Battery Included: Yes

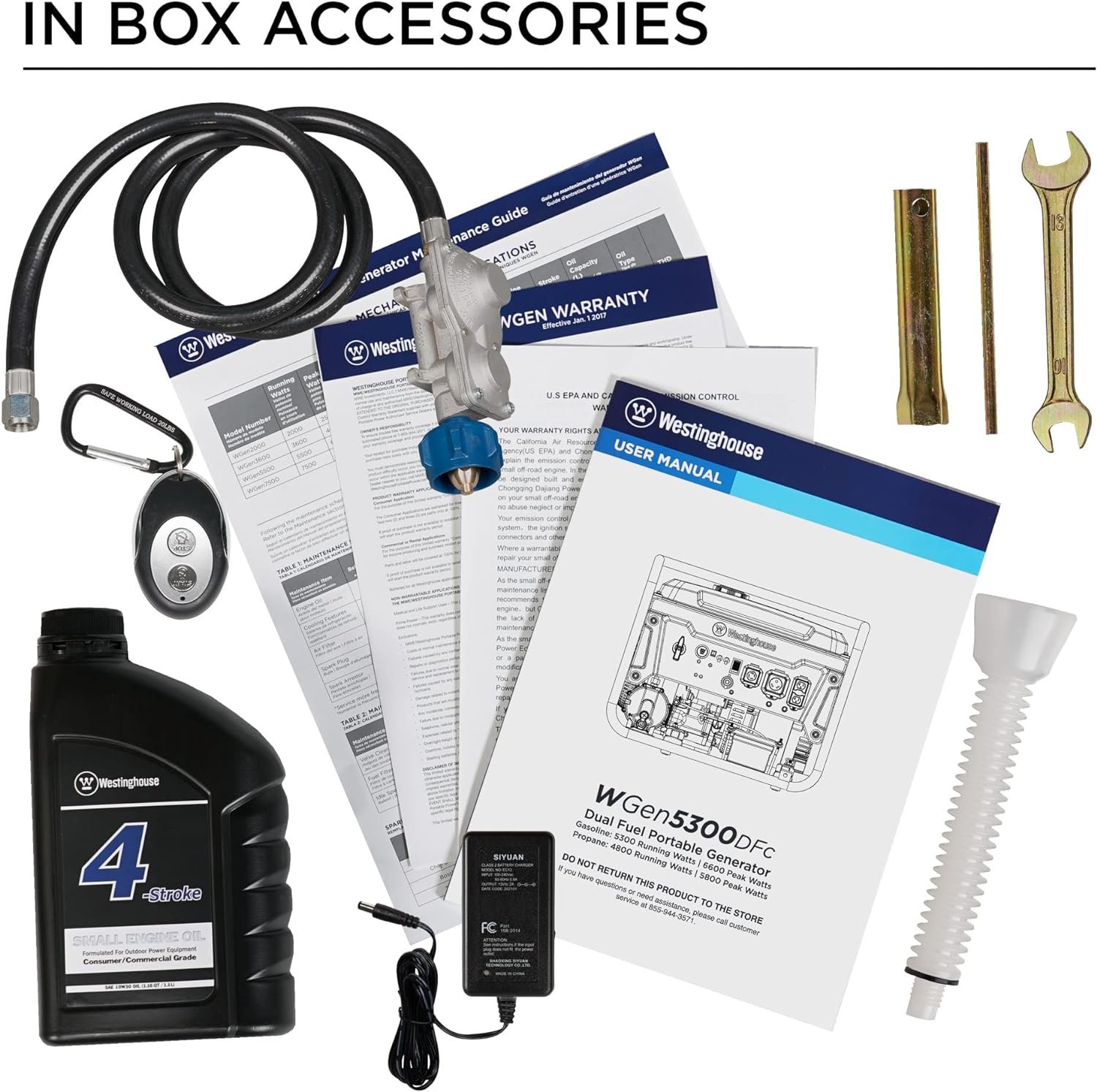

Included Accessories: Oil Bottle, Oil Funnel, Spark Plug Wrench, Remote, Propane Regulator/Hose, Battery Float Charger
Warranty (Residential): 3 Year Limited
Warranty (Commercial): 1 Year Limited
Product Dimensions: 23.43L x 20.63W x 19.48H in.
Dry Unit Weight: 135.6 lb. (61.5 kg)
Packaging Dimensions: 26.7L x 21.6W x 20.3H in.
Shipping Weight: 144.7 lb. (65.6 kg)
PACKAGE CONTENTS: Generator, Quick Start Guide, LPG/Propane hose with regulator, Bottle of SAE 10W-30 oil, Oil Funnel, Wrench, Spark plug wrench, Battery Charger, User manual
