Renogy RNG-KIT-STARTER400D-WND30-US Watt 12 Volt Solar Starter Kit New

Renogy Solar Kits can be used for several different purposes, from trickle charging batteries to acting as an emergency power backup system. The Starter Kit is also ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins – providing many benefits, including, but not limited to, quiet power production and grid independence.

HIGHLIGHTS:
• 5 year limited factory warranty
• Brand new in box
• Ships directly from Renogy out of CA
• Authorized Renogy dealer

FEATURES:
• High solar cell efficiency : Monocrystalline 21%
• EL tested solar modules; no hot-spot heating guaranteed
• Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
• TPT back sheet ensures smooth performance over a long period of time
• IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
• Sealed, Gel Flooded and Lithium charging algorithm ready
• 4-Stage battery charging process for a rapid, efficient, and safe battery charging
• The Renogy Wanderer Li is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
• Pre-drilled holes on the back of the panel allow for fast and secure mounting

SPECIFICATIONS:
Adaptor Kit (SET) Rating Voltage: 600/1000V
Adaptor Kit (SET) Temperature: -40°F to +185°F
8FT 10AWG Tray Cables (A PAIR) Length: 8ft
8FT 10AWG Tray Cables (A PAIR) AWG: 10
8FT 10AWG Tray Cables (A PAIR) Rating Voltage: 600/1000V
8FT 10AWG Tray Cables (A PAIR) Temperature: -40°F to +185°F

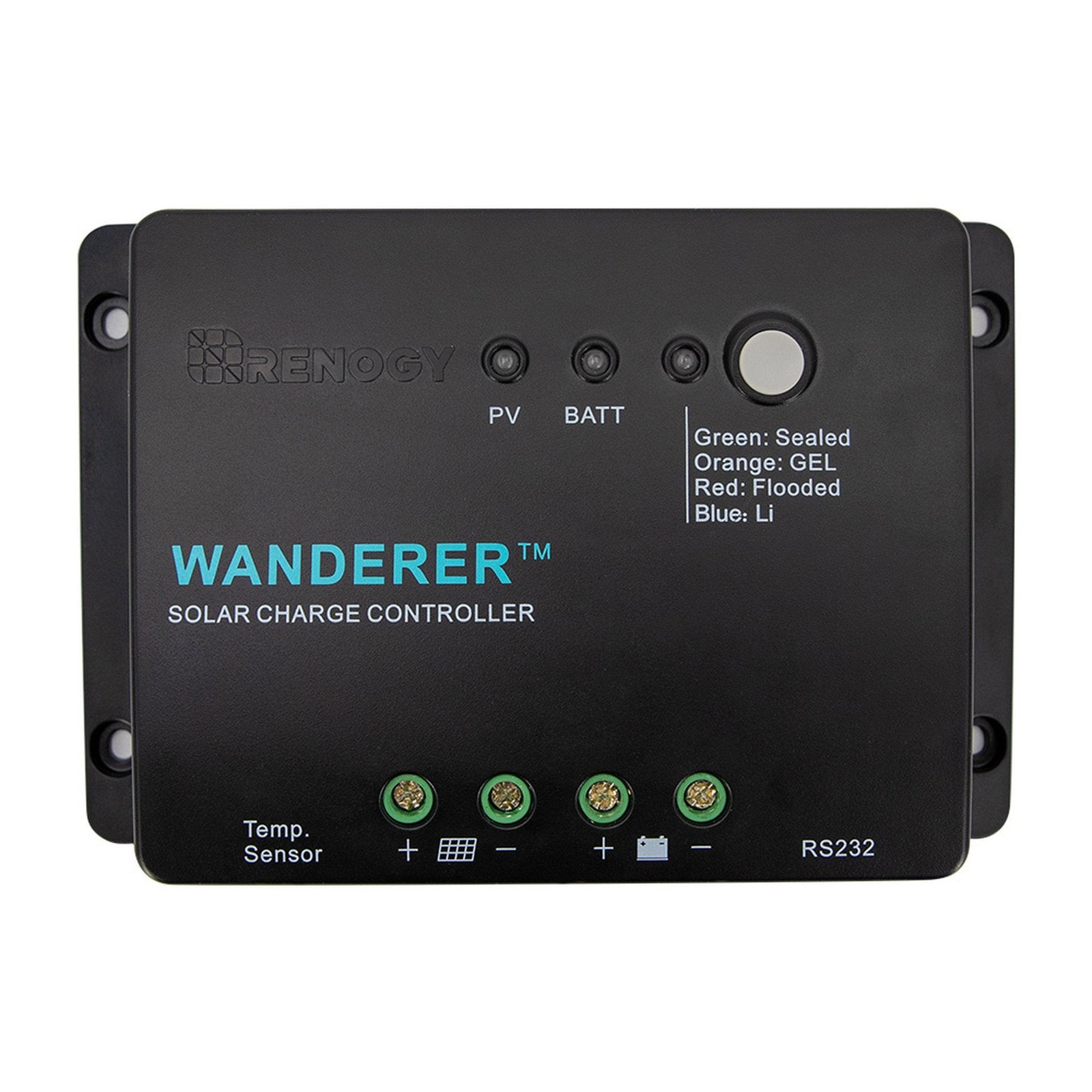

WANDERER LI – 30A PWM Negative-Ground Charge Controller Nominal Voltage: 12 VDC
WANDERER LI – 30A PWM Negative-Ground Charge Controller Rated Charge Current: 30A
WANDERER LI – 30A PWM Negative-Ground Charge Controller Max. PV Input Voltage: 25 VDC
WANDERER LI – 30A PWM Negative-Ground Charge Controller Max. PV Input Power: 400W (12V)
100W Monocrystalline Solar Panel Maximum Power: 100W
100W Monocrystalline Solar Panel Maximum System Voltage: 600V DC (UL)
100W Monocrystalline Solar Panel Open-Circuit Voltage (Voc): 21.6V
100W Monocrystalline Solar Panel Short-Circuit Current (Isc): 6.24A
100W Monocrystalline Solar Panel Optimum Operating Voltage (Vmp): 17.9V
100W Monocrystalline Solar Panel Optimum Operating Current (Imp): 5.72A
100W Monocrystalline Solar Panel Dimensions: 42.2 X 19.6 X 1.38 inches
100W Monocrystalline Solar Panel Weight: 14.3lbs

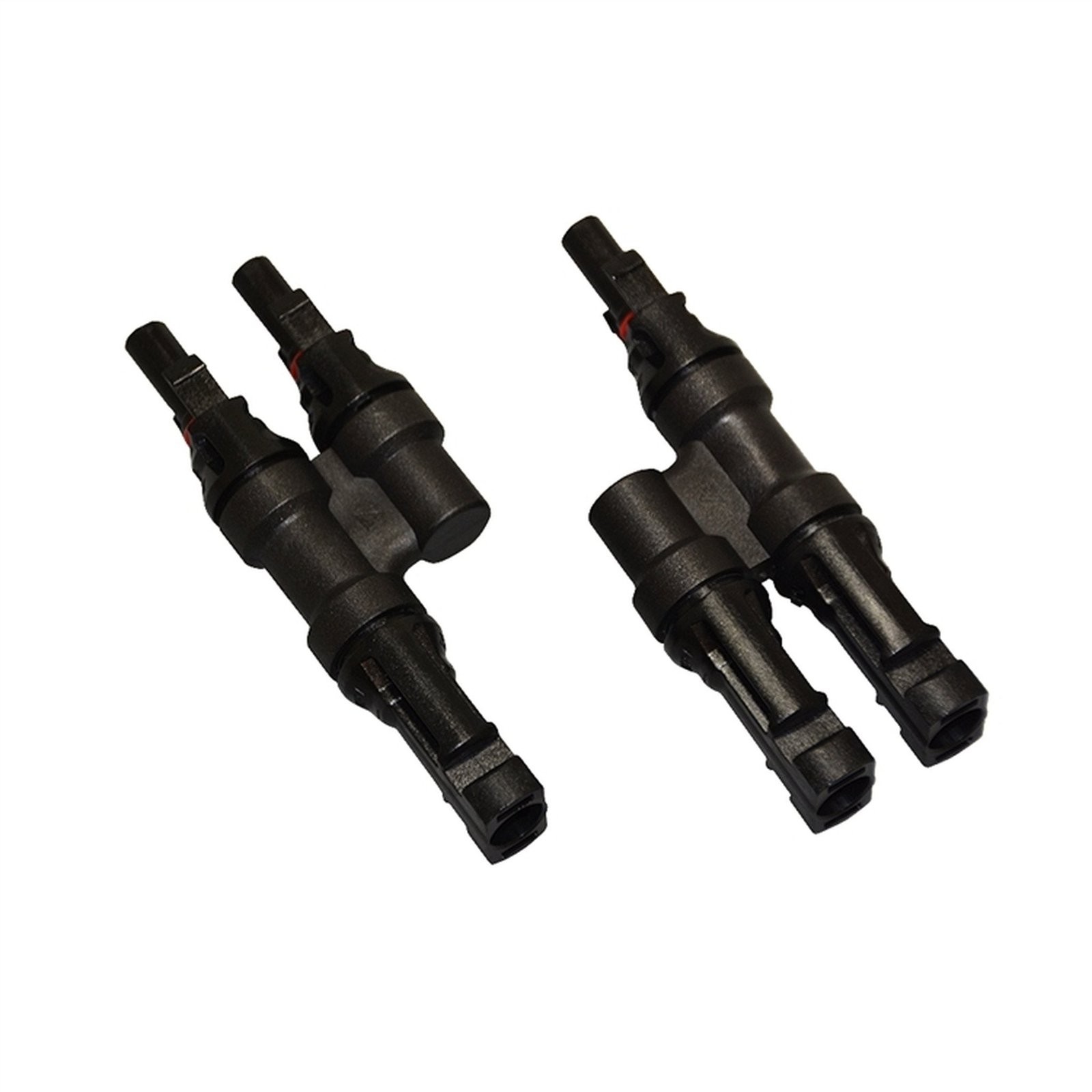

Solar Y Branch Connectors Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Solar Y Branch Connectors Protection Degree: IP67, mated
Solar Y Branch Connectors Wiring Size Range: 10, 12, 14 AWG
Solar Y Branch Connectors Temperature: -40°F to +195°F

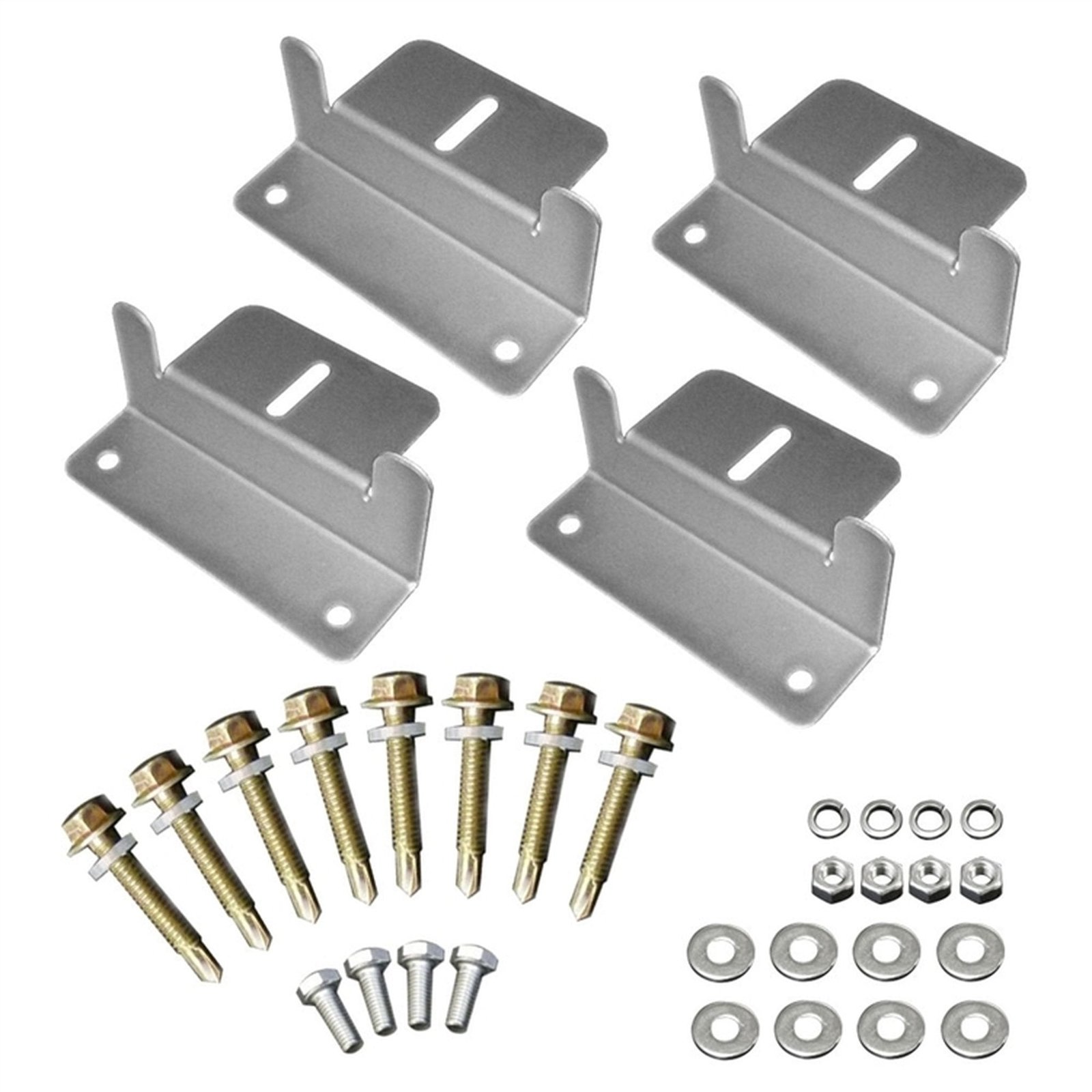

Mounting Z Brackets (SET): Eight Long Cap Bolts and Four Short Bolts
Mounting Z Brackets (SET): Four Spring Washers and Four Washers
Mounting Z Brackets (SET): Four Z Shape Solar Panel Brackets
Mounting Z Brackets (SET): Four Nuts
Adaptor Kit (SET) Length: 20ft
Adaptor Kit (SET) AWG: 10

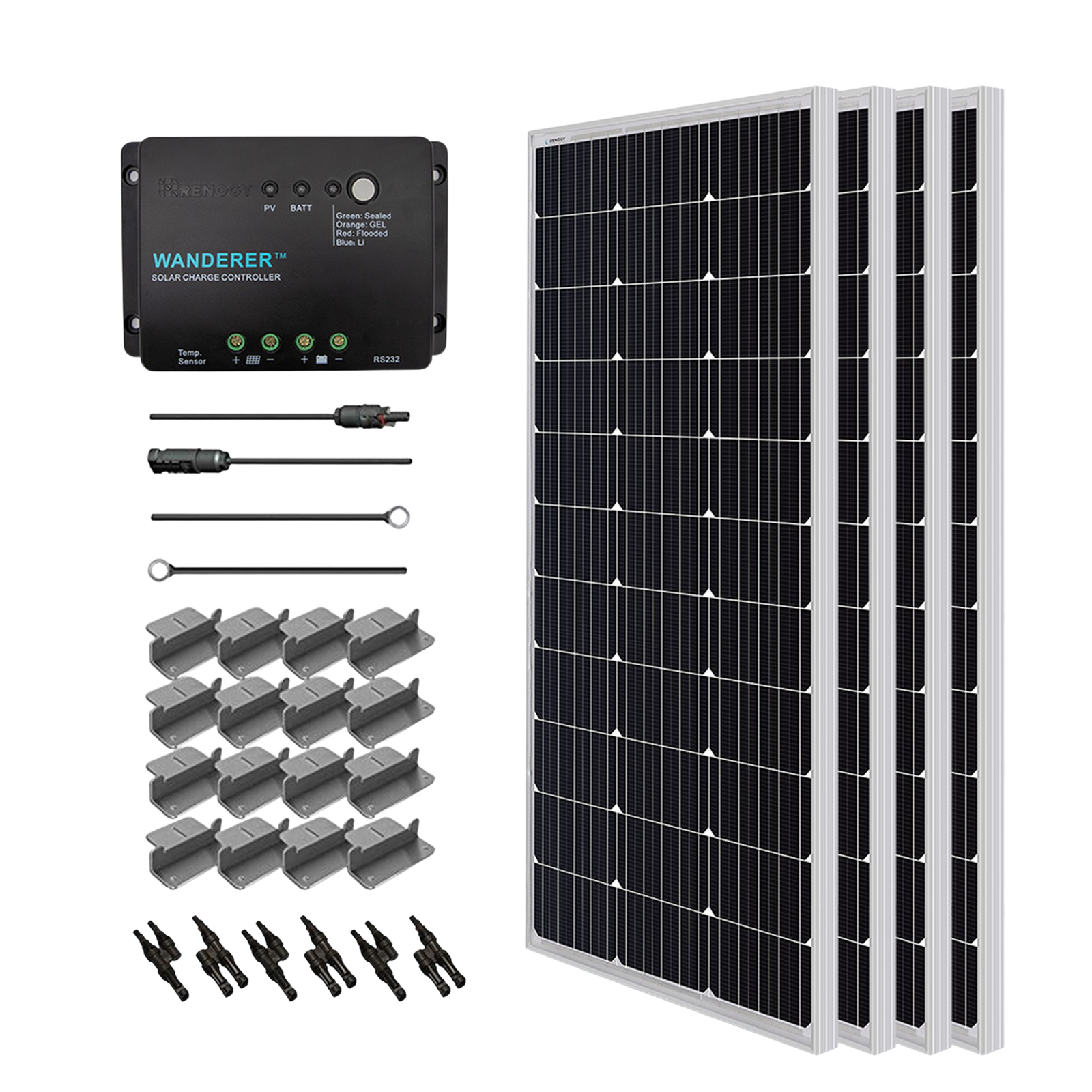

PACKAGE CONTENTS: 4x 100W Mono Panel, 3x Renogy Solar Y Branch Connectors, 4x Mounting Z Brackets, 1x Renogy 20ft 10AWG Solar Adaptor Kit (A pair), 1x Renogy 8ft 10AWG Tray Cables (A pair), 1x Renogy Wanderer Li 30A PWM Charge Controller, User Manual
