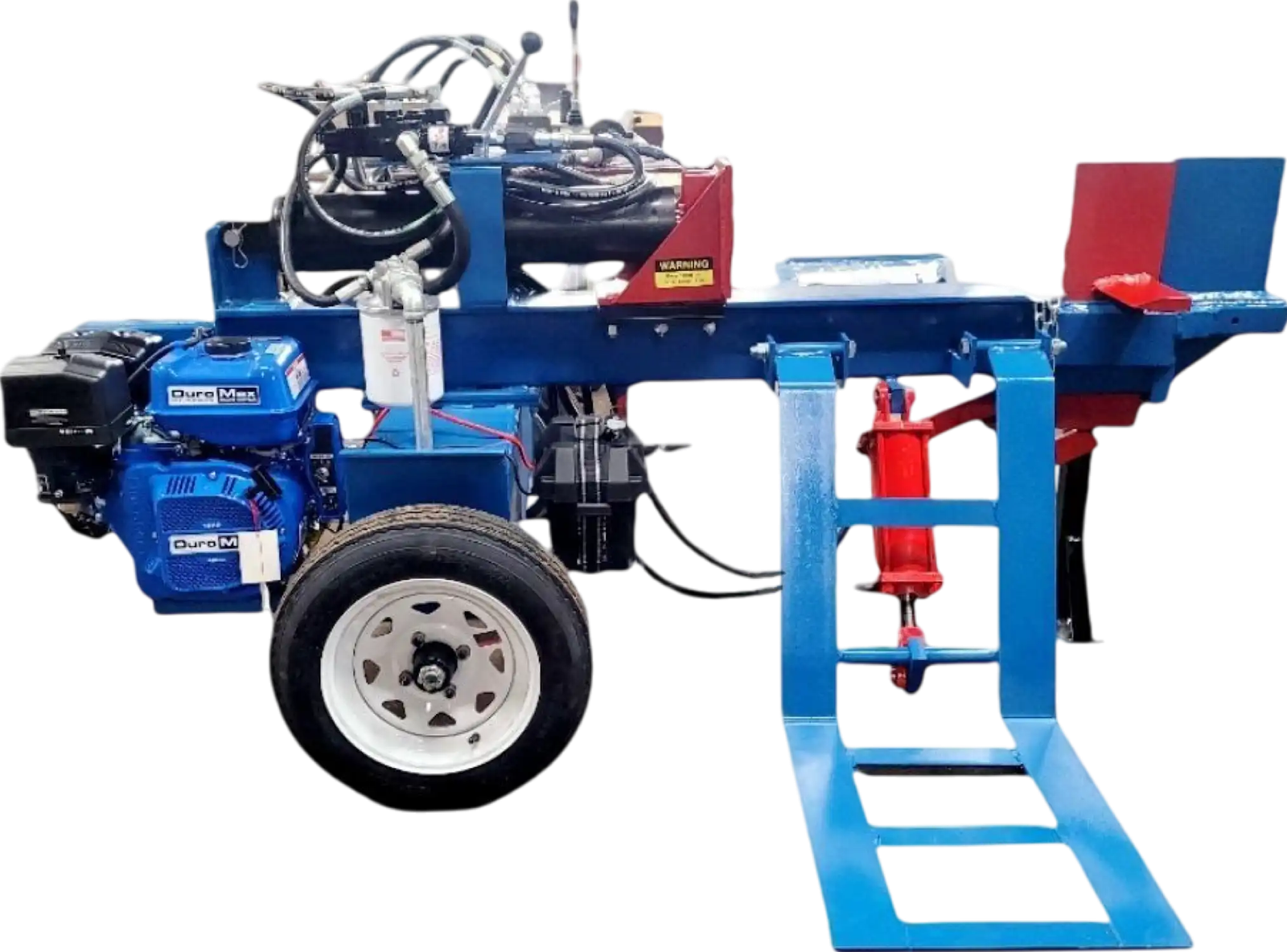

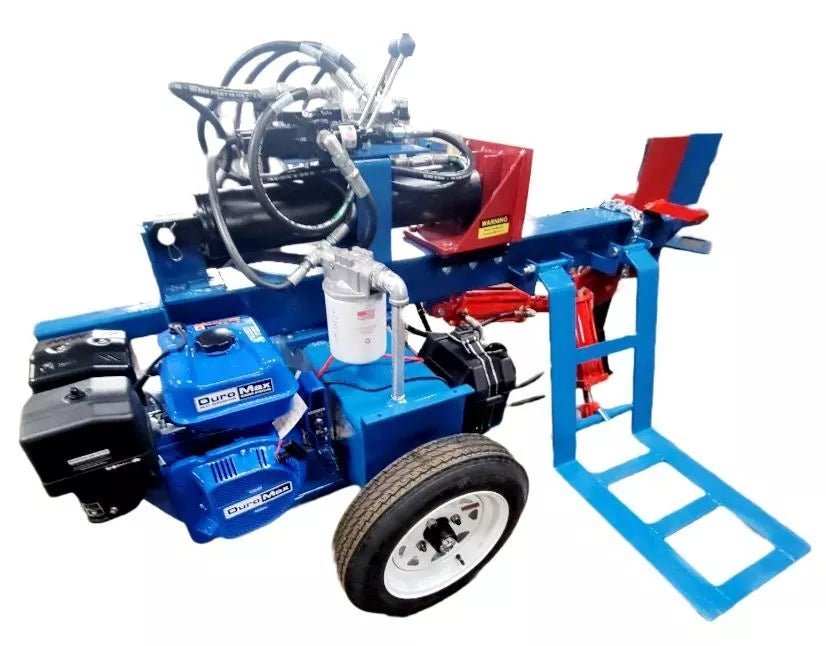

Ramsplitter H34 Log Splitter 34 Ton with 16HP Electric Start DuroMax New

The Ramsplitter H34 Log Splitter is a powerhouse designed for heavy-duty log splitting tasks, featuring a DuroMax 16 HP gasoline engine with electric start. With an impressive 34-ton ram force and a 24-inch stroke, this splitter can handle logs up to 25 inches in length and 40 inches in diameter with ease. Its 14-second cycle time ensures efficient operation, making it perfect for both residential and commercial use. *Not for sale in California*

HIGHLIGHTS:
• Brand new
• 1 year factory warranty
• Manufacturer direct shipping from IL
• Authorized Ramsplitter dealer

FEATURES:

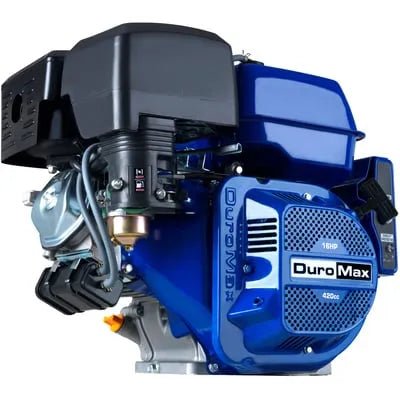

• 16HP Gas Engine: Equipped with a DuroMax XP16HE gasoline engine, the H34 delivers 16 HP of power, ensuring reliable and robust performance. The electric start features provides convenience, while the 1.75-gallon fuel tank and 32.7 fluid oz engine oil capacity ensure extended operation periods without frequent refueling.
• Ergonomic Splitting: The log splitter features a single hydraulic-powered wedge made from hardened steel, with a 12-inch height for precise and effective splitting. Constructed with durable tube steel, the beam’s working height is set at an ergonomic 32 inches, reducing operator fatigue during extended use. The log lift capacity of 500lbs makes handling large logs easier and safer.
• Easy to Transport: The H34 is designed for mobility and ease of transport, featuring a 2″ ball hitch, 12-inch wheels, and a maximum tow speed of 65 mph, facilitating easy transport to different work sites.
• High-Performance Hydraulic System: The H34’s hydraulic system is both powerful and reliable, featuring a 22 GPM two-stage pump, auto-return valve, and wire hydraulic hoses. The 15-gallon hydraulic fluid tank allows for extended use without frequent refills, and the system is compatible with 32 Weight or automatic transmission fluid.
• Built to Last: Weighing 1000 lbs and measuring 96 inches in length, 52 inches in width, and 48 inches in height, the Ramsplitter H34 delivers the power, efficiency, and durability you need. Supported by a 1-year parts warranty, this splitter offers reliable performance and peace of mind.

SPECIFICATIONS:
Ram Force: 34 Tons
Stroke: 24″
Cycle Time: 14 Seconds
Maximum Log Length: 25″
Maximum Log Diameter: 40″
Splitting Wedge: Single Wedge Hydraulic Powered
Wedge Type: Hardened Steel
Wedge Height: 12″
Beam Type: Tube Steel
Beam Working Height: 32″
Engine Type: Gasoline
Engine Brand: DuroMax
Engine Model: XP16HPE
Displacement: 420CC
Engine Power: 16 HP
Fuel Tank Capacity: 1.75 gallons
Oil Capacity: 32.7 fl.oz
Starting System: Electric Start
Pump: 22 GPM, Two-Stage
Valve: Auto-Return
Hoses: Wire Hydraulic Hoses
Hydraulic Fluid Tank Capacity: 15 Gallons
Cylinder Dimensions: Welded 5″ x 24″
Log Lift Capacity: 500 lbs
Tongue Stand: Yes
Trailer Hitch Coupler: 2″ Ball Hitch
Tires/Wheels: 12″
Max Tow Speed: 65 MPH
CARB Approved: No
Assembled Dimensions: 96″ x 52″ x 48″
Product Weight: 1000 lbs
PACKAGE CONTENTS: Ramsplitter H34 Log Splitter w/ 16HP DuroMax, User Manual
