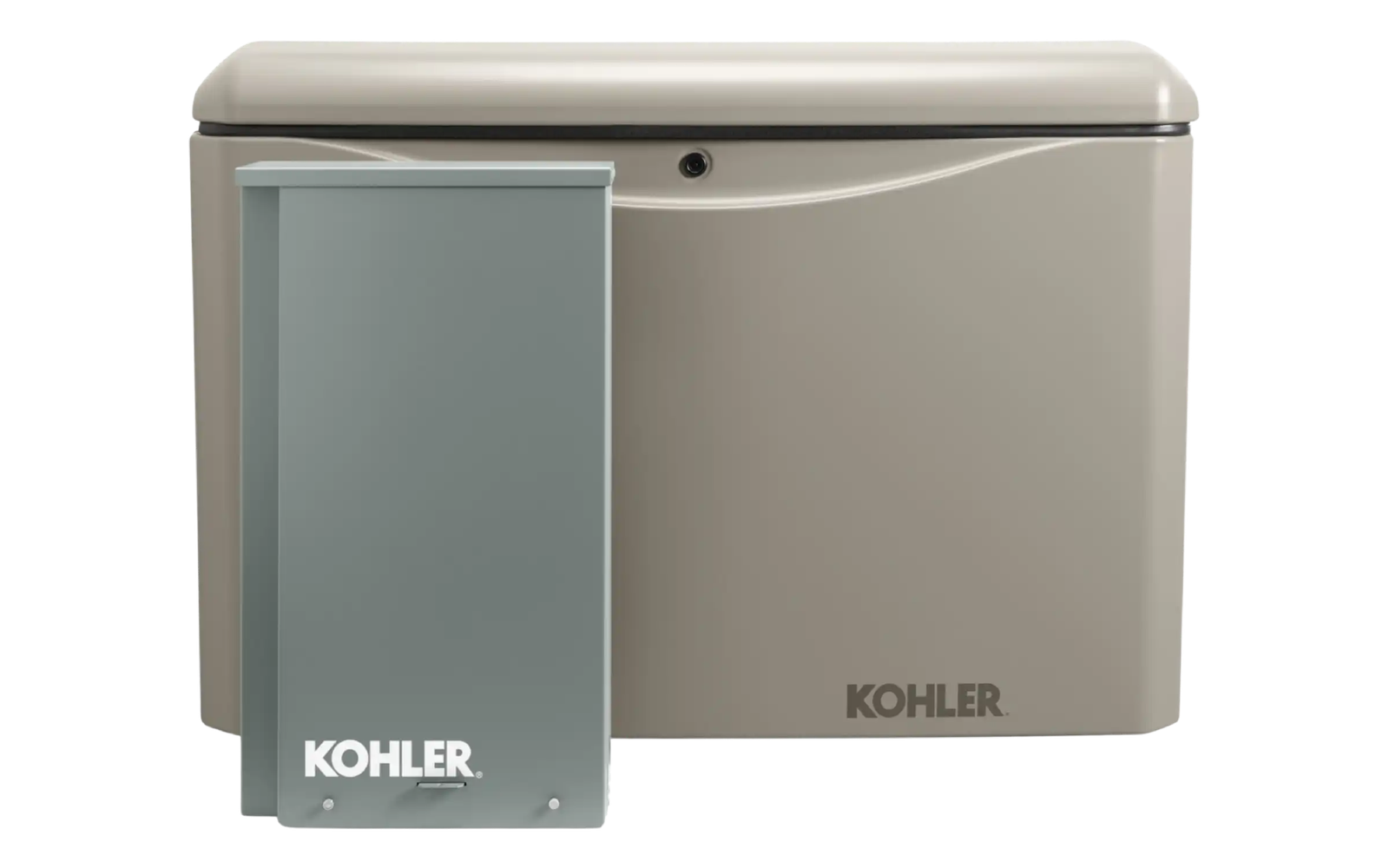

Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and App Connect New

Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 14 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

HIGHLIGHTS:
• 5 year comprehensive warranty
• Remote Monitoring
• Brand new in box
• Free shipping
• Works with liquid propane or natural gas
• Authorized Kohler dealer

FEATURES:
• Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather
• In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics. Based on generator and load size
• We’ve got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that’s built to last
• KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine
• PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
• Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V
• Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
• Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
• Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
• Comes with either an RXT 200-amp outdoor-rated standard automatic transfer switch
• RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
• Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
• Stylish corrosion-proof enclosure impact tested to -30°F
• Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
• Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
• Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.

SPECIFICATIONS:
Fuel Consumption on NG at 50% load: 124 cfh
Fuel Consumption on LP at 50% load: 60 cfh
Controller: RDC2 Controller
Cylinder Arrangement: V-2
Dimensions: 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)
Engine Manufacturer/Description: KOHLER Engine
Model: CH740
Engine/Alternator RPM: 3600
Fuel Type: LPG, Natural Gas
Frequency: 60 Hz
Phase: Single Phase or Three Phase
Voltage @ 60 Hz: 120/240|277/480
Digital Voltage Regulation: ±1.0%
Built in Mounting Pad: Yes
Model: 14RCAL
Rated kW LP: 14 kW
Rated kW NG: 12 kW
Amps LP: 58 amps
Amps NG: 50 amps
Peak Motor Starting kVA @240 V: 33 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 725 cm³ (44 cu. in.)
Horsepower: NG 20.5 HP, LP 23.6 HP
Enclosure Material: Aluminum
Sound Output During Weekly Exercise: 63 dB(A)
Sound Output During Full-speed Operation: 67 dB(A)
Response Time: 10 seconds
Warranty: Premium five-year limited warranty
Country of Origin: US
Certifications/Listings: UL 2200, EPA, CSA, cUL
Automatic Transfer Switch: Included
Remote Monitoring Available: KOHLER® Energy Management App
Off Grid / Utility Backup: Off Grid, Utility Backup
Weight: 490/500 lbs. (222/227 kg)
Alternator Type: 2-Pole, Rotating Field
PACKAGE CONTENTS: Kohler 14RCAL-200SELS 14KW Standby Generator, 200 Amp Automatic Transfer Switch, User’s Manual
