Iron and Oak Log Splitter 24 Ton Vertical/Horizontal Tow Behind Portable Gas with Honda GX160 Engine 163cc BHVH2418GX New

The Iron & Oak 24-ton log splitter gives you the ability to split both vertically and horizontally. The 24 tons of pressure can split through most logs — ideal for rental properties and homeowners. This commercial-grade model comes standard with bells and whistles such as a log cradle, log dislodger, fenders, and more.

HIGHLIGHTS:
• Brand new
• 2 year limited warranty
• Manufacturer direct shipping from MN
• Authorized Iron & Oak dealer

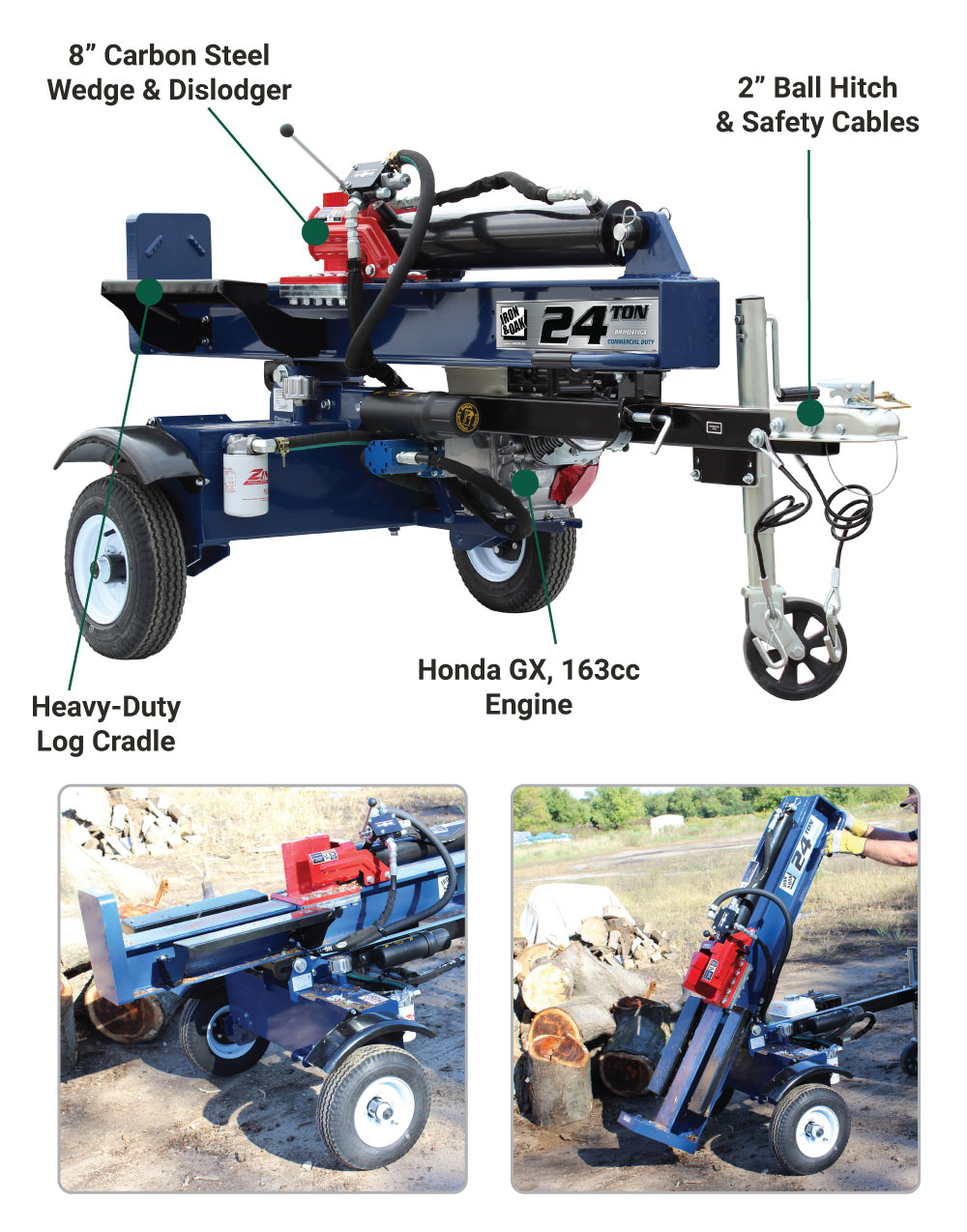

FEATURES:
• The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine
• Offset valve for a better operator position

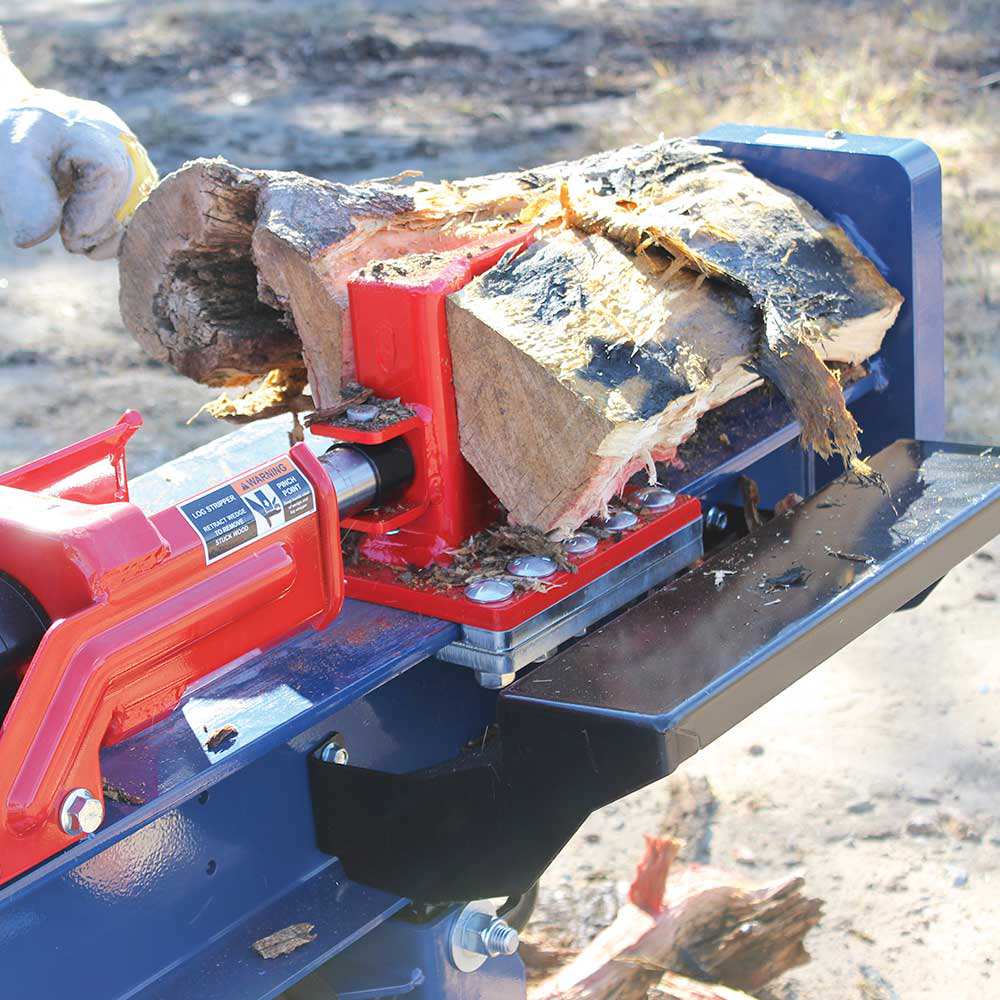

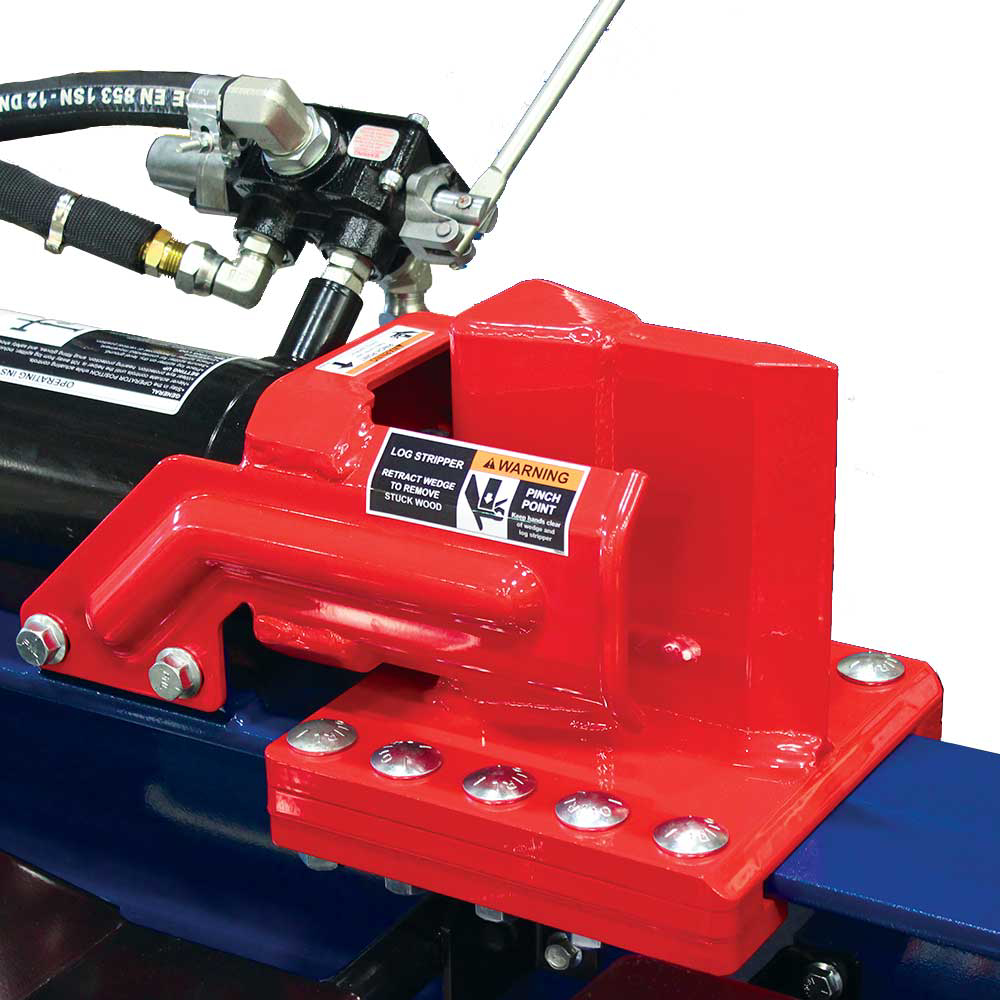

• Heavy-duty wedge design with five bolts per side
• Halite commercial cylinder seals
• Log dislodger and log cradle standard
• Larger jackwheel makes it easier to move
• Auto latch system locks beam into the horizontal position for safe towing
• Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
• 2″ ball hitch and tow cables

SPECIFICATIONS:
Equipment Type: Log Splitter (Tow-behind)
Cycle Time: 13 Seconds
Cylinder Size: 4 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement: 163cc
Engine: GX160
Engine Brand: Honda
Hitch: 2 In.
Hydraulic Capacity: 10.0 Gal. System Total (tank 9 Gal. System Total)
Log Length: 25 in. Max

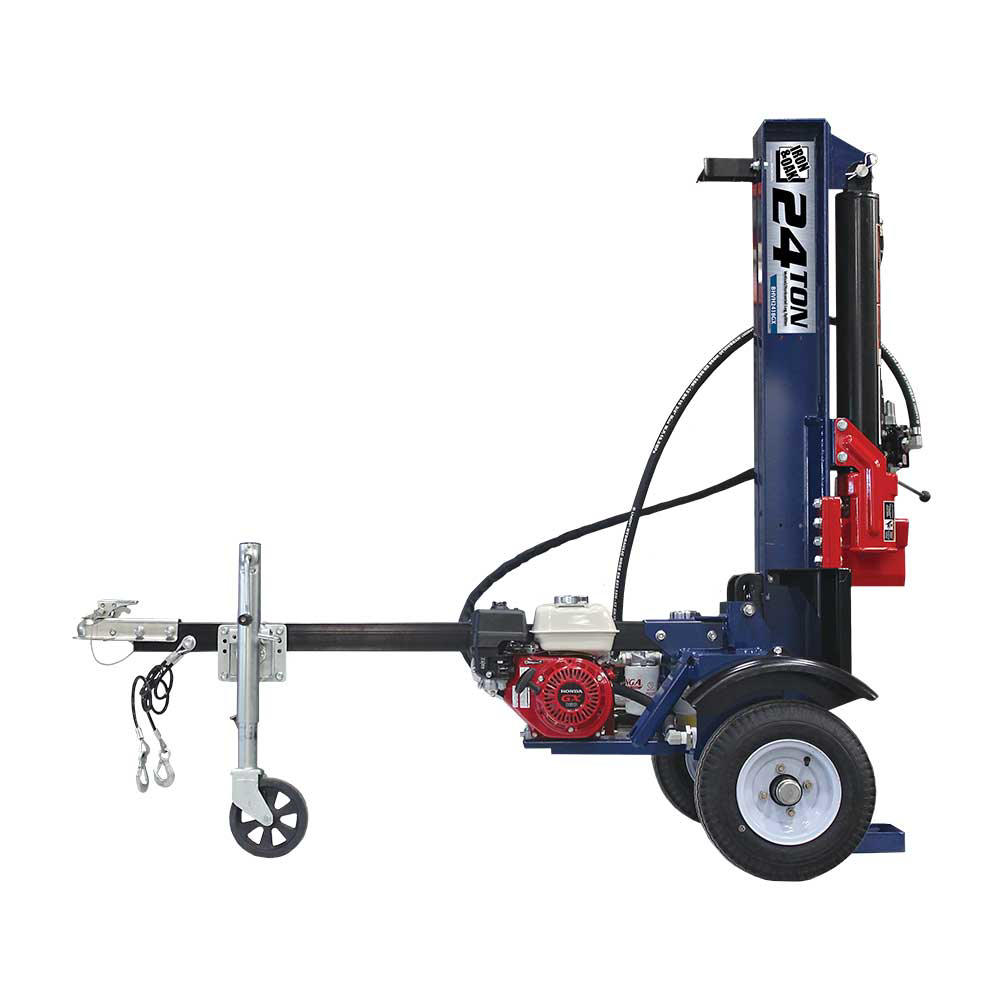

Operation: Horizontal And Vertical
Pump Type: 11 GPM Hi-lo 2 Stage
Splitting Force (Tons): 24 Tons
Splitting Height: 32 In.

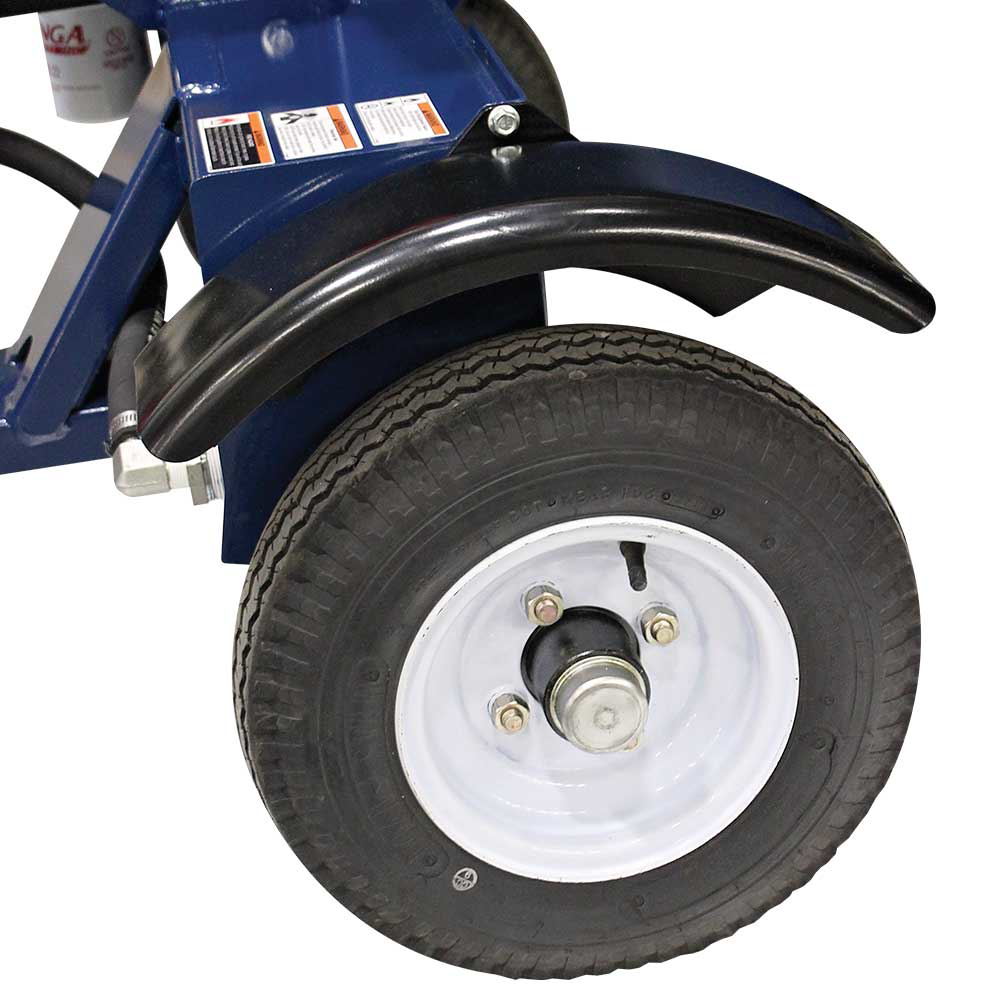

Tires: 4.8 In. X 8.0 In. Highway Rated
Wedge: Heavy-duty, 5 Bolts Per Side
CARB Compliant: Yes
Dry Weight: 675 lbs.
PACKAGE CONTENTS: Iron & Oak BHVH2418GX, User’s Manual
