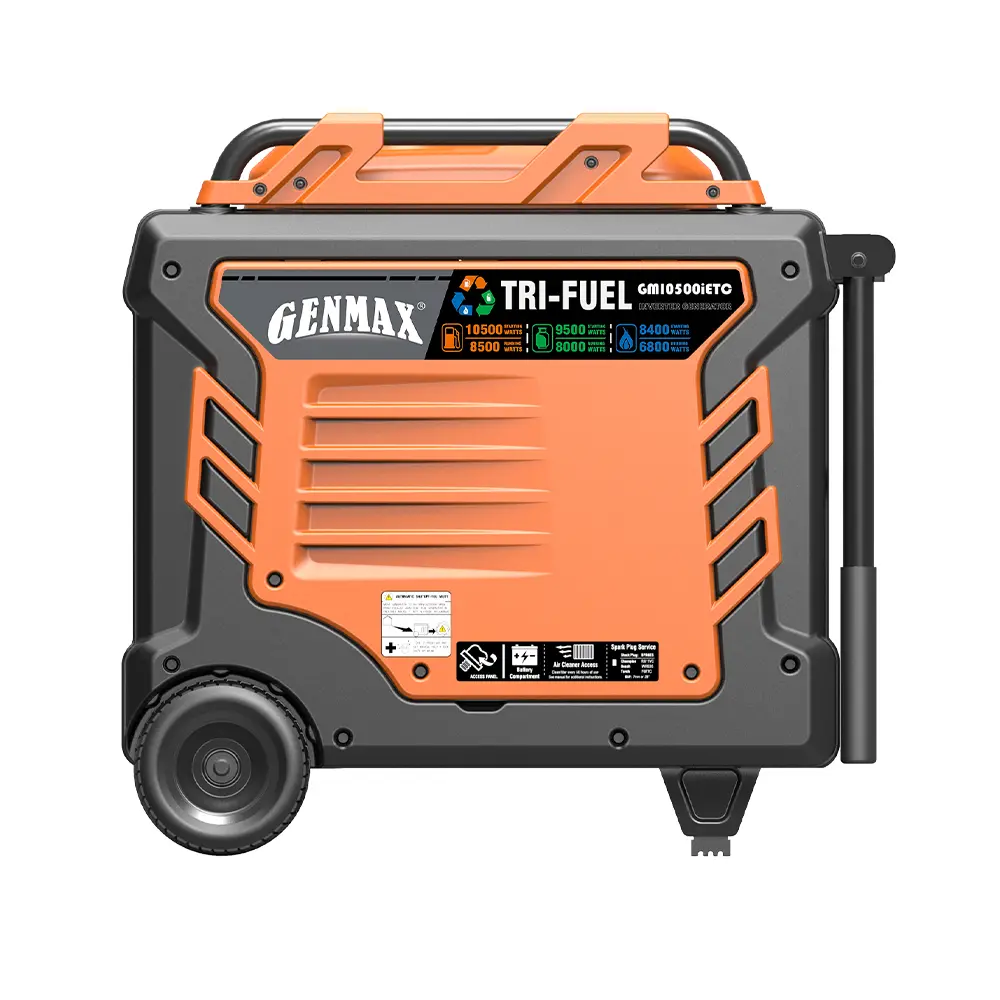

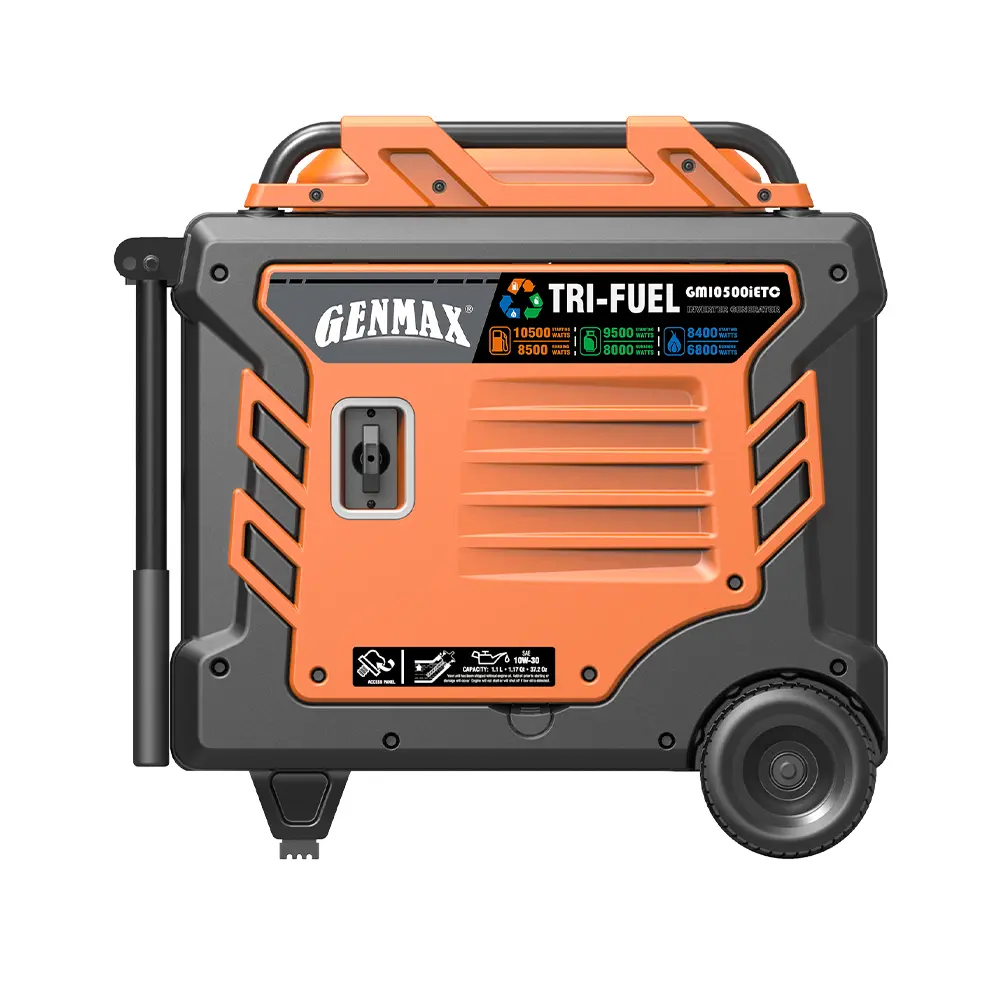

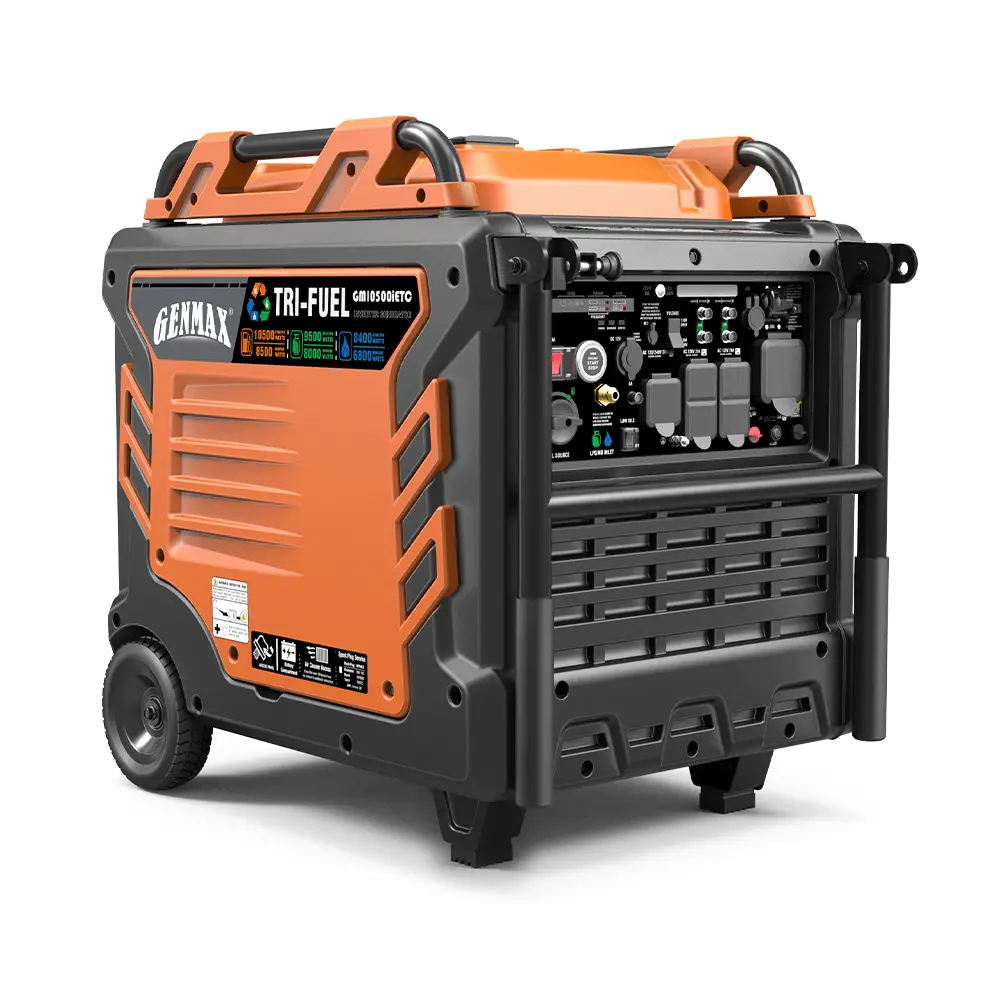

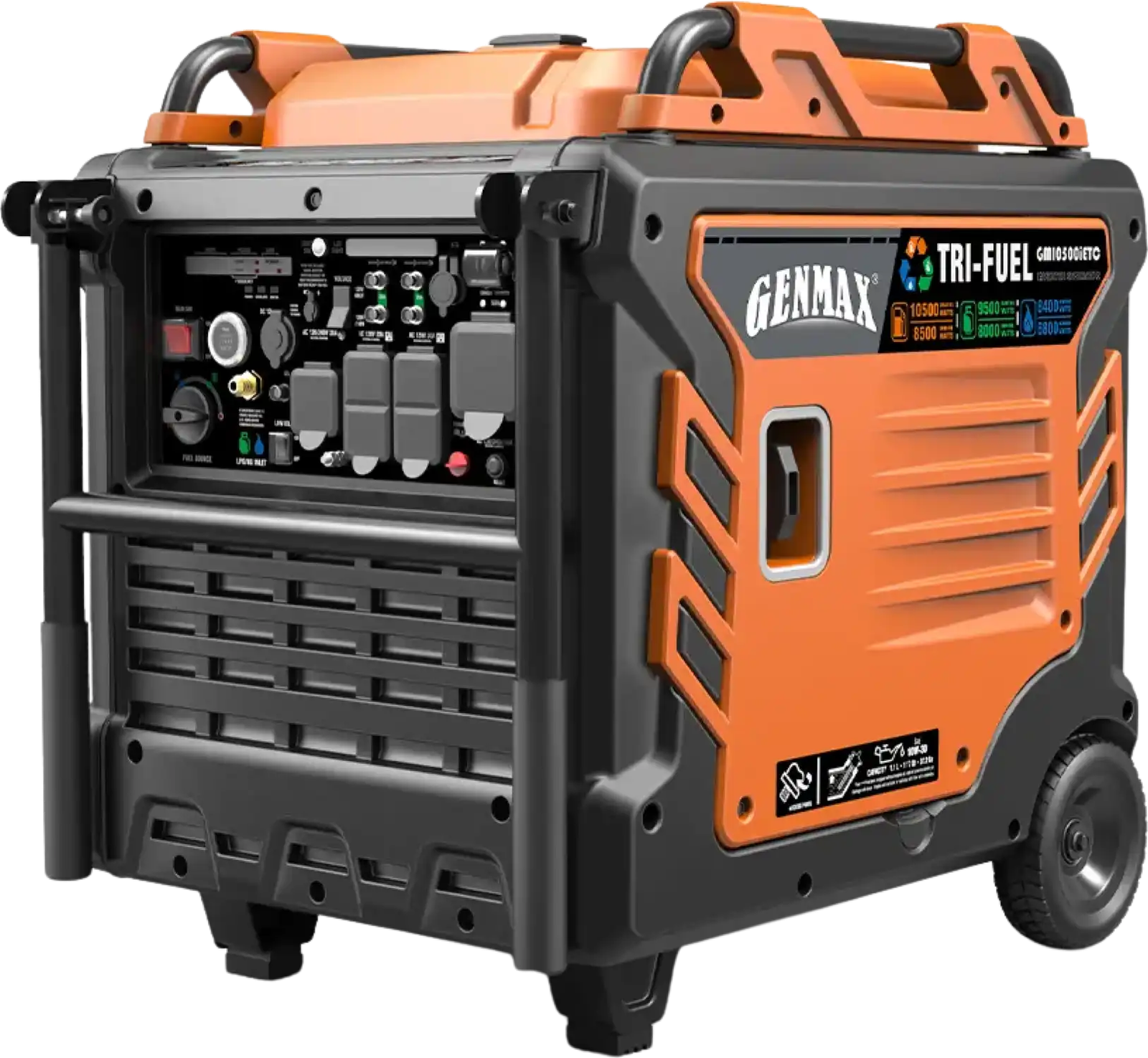

The GM10500IETC is powered by a 4-stroke 458cc OHV engine. Producing 10500 stating watts/ 8500 running watts, less than 3%. It is an extremely powerful single cylinder inverter generator. Tri-fuel capable. The entire machine is also equipped with protective features that greatly enhance operation, safety, and reliability. Authentications include EPA, CARB, PSE, and PGMA. OPEN BOX: Unit does not include the original box but is in like new condition. Warranty still applies. Unit is an unused return.
HIGHLIGHTS:
• Brand new in box
• 3 year factory warranty
• Remote start
• Manufacturer direct shipping from CA or TX
• Fast shipping
• Authorized GENMAX dealer
PLUG TYPES:
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (14-50R)
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (14-50R)
FEATURES:
• Large Load Capacity – GM10500iETC is extremely powerful among single cylinder silent inverter generators. It is temperature resistant, and has undergone environmental testing up to 131 degrees Fahrenheit. This tri-fuel generator produces 8500 running watts and 10500 starting watts on gasoline. 8000 running watts and 9500 starting watts on LPG. 6800 running watts and 8400 starting watts on natural gas. Less than 3% THD.
• Tri-fuel Selectivity – Multi fuel options reduce fuel shortage risks. Select between gasoline, LPG, or natural gas. The patented fuel selector switch is easy to use and allows for smooth operation.
• Perfect Protection Devices – The entire machine is equipped with protective features which greatly enhance this generator’s operation, safety, and reliability. These protective features include overload, thermal, overvoltage, undervoltage, overcurrent, short circuit, and overspeed protection.

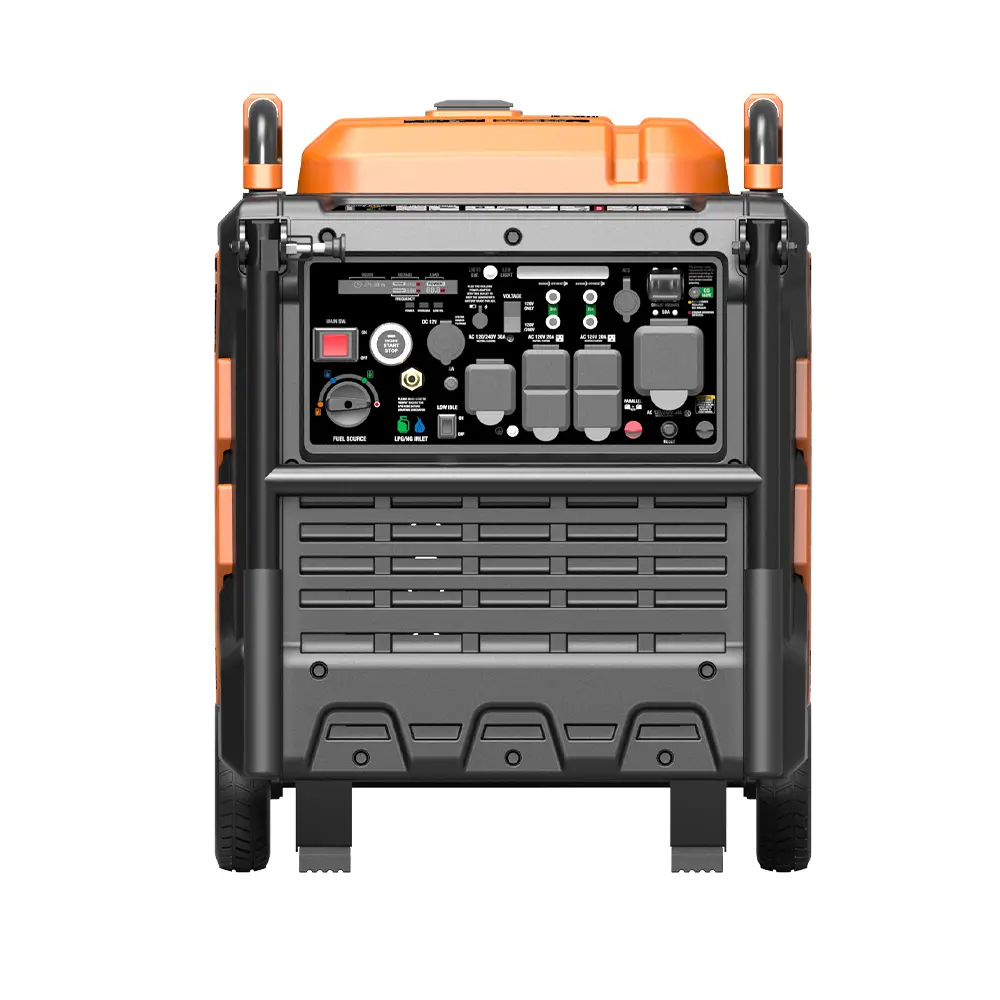

• Control Panel – Equipped with 1X 120/240V AC 30A L14-30R Outlet, DC Cigarette Lighter Outlet: 12V DC 8.3A, 1X 120/240V AC 50A 14-50R Outlet, 4X120V AC 20A 5-20R Outlet, and CO alarm. Additional features include: Two parallel connection sockets (cable not included), battery charging port, overload reset switch, LED Light, and a voltage transfer Switch. This machine can accommodate 120V/240V simultaneous use. Starting options include remote, button, and electric.
• Neutral Floating – Using our special bonding plug (sold separately), it is easy to adapt to a neutrally bonded status for portable use.
• WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
CARB: Yes
Running (kW): 8.5 (GAS) / 8.0 (LPG) / 6.8 (NG)
Starting (kW): 10.5 (GAS) / 9.5 (LPG) / 8.4 (NG)
40HQ (CTN): 126
@100% Load: 5.7L/H
@75% Load: 4.3L/H
@50% Load: 3.2L/H
@25% Load: 2.2L/H
@100% Load: 3.43kg/H
@75% Load: 3.07kg/H
@50% Load: 2.43kg/H
@25% Load: 1.65kg/H
Engine Model: 460i
Dynamic External Characteristic: ≥10kw/3600 RPM
Cylinder (Diameter x Stroke): 3.62 x 2.72 in (92 x 69 mm)
Engine Displacement (cc): 458
Recommended Oil: SAE S10W/30
Oil grade: API standard model SJ or higher
Oil Temperature: Ordinary temperature: ≤ 248°F (120℃)
Cylinder Head Temperature: Ordinary temperature: ≤ 428°F (220℃)
Oil Capacity Volume: 0.26 Gal. (1000 mL)
Rated Voltage: 120v/240v
Frequency Hz: 60
Rated Current A: 35.4 (GAS) / 33.3 (LPG) / 28.3 (NG)
Inductive and Capacitive Load: ≥80% Running power
Vibration Displacement: ≤0.5mm
None ECO rpm: 3600 RPM
Low Idle RPM: 2600-3600 RPM
Recommended Ambient Temperature: 5°F to 104°F (-15℃ to 40℃)
Noise dB (at 7m) (25% load): 62
Starting Method: Recoil / Push button / Remote Start
Mobility: Hand lift/hand handle wheel
Service Life Hours: 1000
Fuel Tank Volume: 6.9 gal. (26 L)
Full Fuel Running Time: 100% load 4.5h @50% load 8.1h
Product Dimensions: 30.9 × 22.6 × 29.3 in (785 x 575 x 745 mm)
Package Dimensions: 36.81 x 24.61 x 31.89 in (935 x 625 x 810 mm)
Net Weight: 247 lbs. (112 kgs)
Gross Weight: 282.19 lbs. (128 kgs)
PACKAGE CONTENTS: Inverter Generator (Open Box), Spark plug socket wrench, Dual-purpose screwdriver, Funnel, NEMA L14-30P locking plug, NEMA 14-50P industrial plug, LPG and NG hoses, NG quick connector, Battery charger, ATS cable, Rain cover, Remote start key, Owner’s Manual
