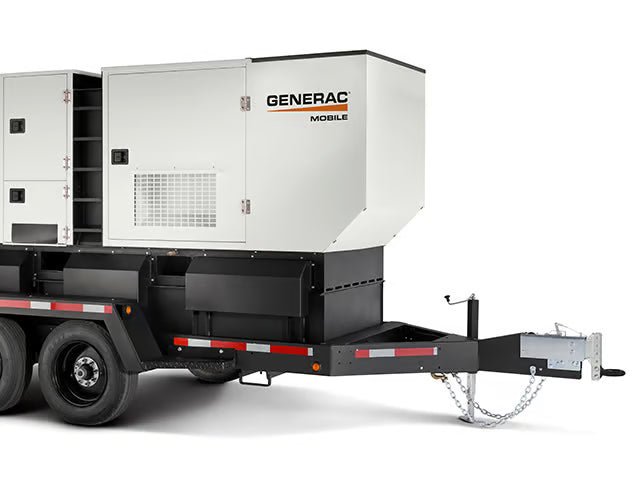

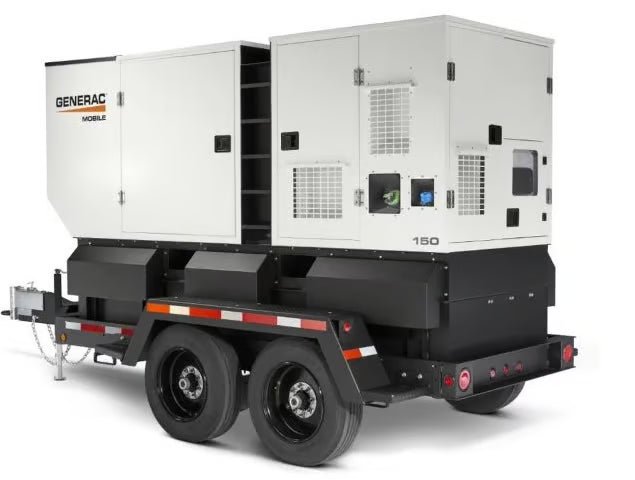

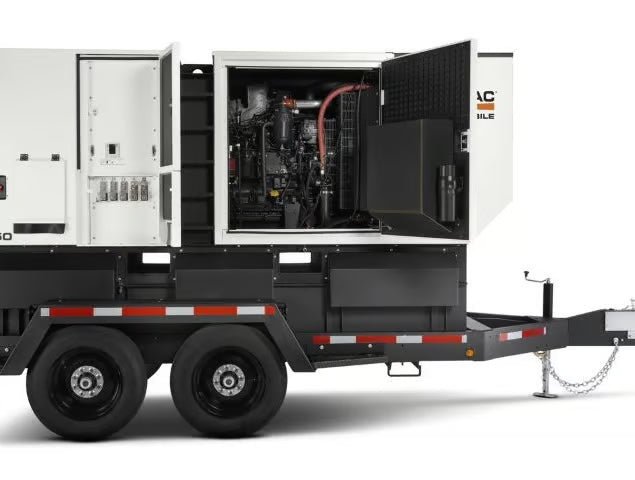

Generac Magnum Mobile Generator 150kVA 120kW Diesel John Deere Engine Towable MDG150DF4 New

The Generac MDG150DF4 is a mobile diesel generator designed to deliver reliable, clean power for demanding jobsite and industrial applications. It features a John Deere 6-cylinder engine, aluminum sound-attenuated enclosure, and a user-friendly Deep Sea controller for straightforward operation and monitoring. The unit is designed for long run times, with features including a voltage selector switch and programmable settings. Its rugged towable design and lockable enclosure help support transport, security, and service access in challenging environments.

HIGHLIGHTS:
• 2 year factory warranty
• Brand new in box
• Ships directly from Generac out of WI
• Authorized Generac dealer

PLUG TYPES:
• ×2 20 Amp GFCI Standard Receptacle (20A-GFCI)
• ×3 125v/250v 50 Amp Twist Lock (CS6369)
• ×2 20 Amp GFCI Standard Receptacle (20A-GFCI)
• ×3 125v/250v 50 Amp Twist Lock (CS6369)

FEATURES:
• Up to 24 hour run time
• 6.8 L turbocharged John Deere diesel engine
• Sound attenuated, rust-proof aluminum cabinet
• Single Phase – Three Phase switch
• Operational at 60 Hz
• Parallel-ready design accommodates up to 32 generators
• Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
• A powerful processor with intuitive operation and real time operational data
• Programmable controller providing flexible application capabilities
• Wide doors for easy access during maintenance
• Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment components
• 500 hour service interval
• 13 warning and shutdown features
• Interior cabinet and control panel lighting
• 3-point contact ladder provides full foot contact
• Stacked access doors with auto shutdown
• Anti-skid plating on fenders for secure footing
• LED trailer lighting provides enhanced visibility

SPECIFICATIONS:
Model: MDG150DF4
Prime Power Rating: 120 kW / 150 kVA
Standby Power Rating: 144 kW / 180 kVA
Voltage: 120/240V
Frequency: 60 Hz
Engine Make: John Deere
Engine Type: 6-cylinder in-line diesel
Engine Displacement: 6.8 L
Intake Air Method: Turbocharged and aftercooled
EPA Emissions Compliance: Tier 4 Final
Fuel Tank Capacity Total: 358 gal
Fuel Tank Capacity Usable: 343 gal
Runtime at 75% Load: 37 hr
DEF Tank Capacity Total: 34.5 gal
DEF Tank Capacity Usable: 28.5 gal
Controller: Deep Sea Electronics 7310 MKII
Voltage Selection Switch: 3-position
Main Circuit Breaker: 600 A manual with shunt trip
Enclosure: Aluminum sound-attenuated insulated and baffled
Axles: Two 7,000 lbs axles
Hitch: 3″ pintle ring
Tires: 215/75 on 17.5″ rim
DOT Approved: Yes
Dimensions: Not specified on the product page markup
PACKAGE CONTENTS: Generac MDG150DF4 mobile diesel generator, Owner’s manual
