Powerful and versatile, the DS12000EH is ready for anything. Perfect for home backup, the Dual Fuel option doubles fuel life when running propane, making this unit an effective, low-maintenance solution for your home standby needs. Producing over 12,000 watts, you can rest assured you will stay powered through any storm. MX2 POWER BOOST Double the 120V power for appliances & RVs. SURGE-ARREST Protects your generator from power surges. ALL METAL CONSTRUCTION Built tough to last even on the roughest job sites. EXTENDED RUNTIME Up to 8 hours on a full tank of gasoline. PUSH BUTTON START With Push Button Start, starting your generator is as easy as starting your car.
HIGHLIGHTS:
• Brand new in box
• 3 year factory warranty
• Fast shipping from CA or TN
• Manufacturer direct
• Authorized Duromax dealer
PLUG TYPES:
• ×2 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120v 30 Amp Twist Lock (L5-30R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (L14-50R)
• ×2 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120v 30 Amp Twist Lock (L5-30R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (L14-50R)
FEATURES:
• Plenty of Power – With 12,000 starting watts and 9,500 running watts, this unit can handle heavy loads, from lights and a refrigerator to a home air conditioner and high amperage power tools.
• Dual Fuel Technology – This generator runs on gasoline or propane, giving you the freedom and flexibility of fuel choice.

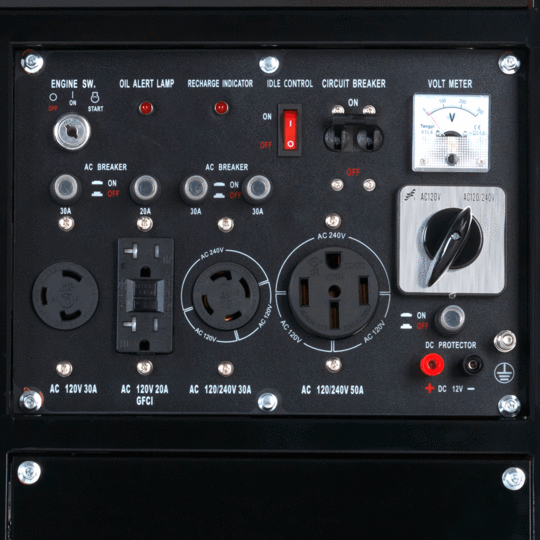

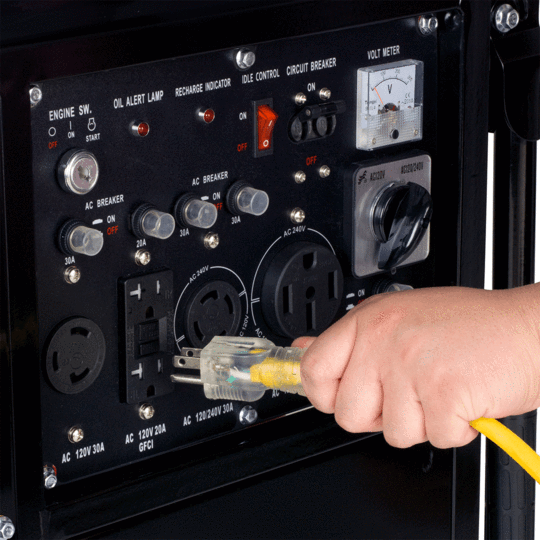

• Fully Featured Power Panel – The power panel includes a wide selection of outlets for maximum compatibility in your applications including: (2) 120V household GFCI outlets, (1) 120V 30A twist lock outlet, (1) 240V 30A outlet, and (1) 240V 50A outlet. The panel also includes a voltmeter and 12V DC charging posts for charging external batteries.
• MX2 Technology – Get the maximum power from each of the 120-volt receptacles. Choose between operating the generator at both 120V and 240V simultaneously, or at 120V only with full power. Ideal for usage with RVs.
• Low Oil Shutoff – Protects your investment by automatically shutting the generator off when it senses that the oil is low.
• Idle Control – Lowers the RPMs of the generator when not in use, saving fuel and reducing noise. Ideal on job sites where power is used intermittently.

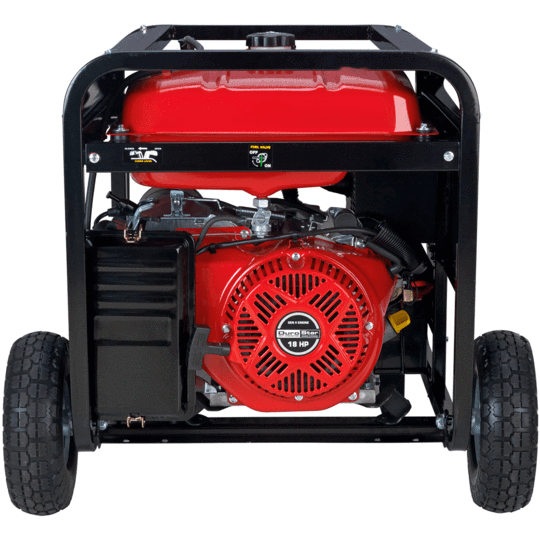

• Powerful Engine – The DuroStar 457cc OHV engine is a workhorse that provides plenty of power to handle multiple jobs, from powering high voltage appliances to heavy duty power tools.
• Complies with Emissions Standards – All DuroStar generators are both approved by the EPA (Environmental Protection Agency) and CARB (California Air Resources Board) and follow strict guidelines to ensure our generators are as environmentally friendly as possible.
SPECIFICATIONS:

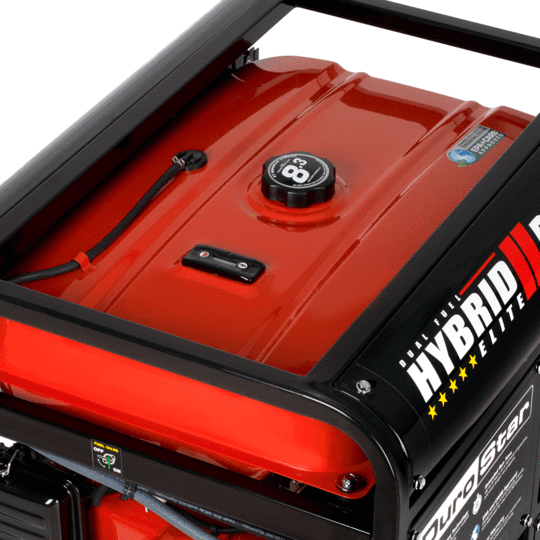

FUEL TANK CAPACITY (GASOLINE): 8.3 GALLONS
SUGGESTED TANK SIZE (PROPANE): 40 LBS
RUNTIME (GASOLINE) AT 1/2 LOAD: 8.83 HOURS
RUNTIME (PROPANE) AT 1/2 LOAD: 7.2 HOURS
START TYPE: ELECTRIC / RECOIL
VOLUME LEVEL: 74dB
EPA CERTIFIED: YES
CARB CERTIFIED: YES
CSA CERTIFIED: NO
PRODUCT DIMENSIONS: 29″L x 30″W x 26″H
PRODUCT WEIGHT: 224 LBS
UPC: 811640014681
PEAK WATTS (GASOLINE): 12,000
RUNNING WATTS (GASOLINE): 9,500
PEAK AMPS @ 120V (GASOLINE): 100.00
RUNNING AMPS @ 120V (GASOLINE): 79.17
PEAK AMPS @ 240V (GASOLINE): 50.00
RUNNING AMPS @ 240V (GASOLINE): 39.58
PEAK WATTS (PROPANE): 11,400
RUNNING WATTS (PROPANE): 9,025
PEAK AMPS @ 120V (PROPANE): 95.00
RUNNING AMPS @ 120V (PROPANE): 75.21
PEAK AMPS @ 240V (PROPANE): 47.50
RUNNING AMPS @ 240V (PROPANE): 36.60
AMPERAGE: 79.17A / 39.58A
VOLTAGE: 120V / 240VAC & 12VDC
FREQUENCY: 60Hz
ENGINE SIZE: 457cc
ENGINE TYPE: 4-CYCLE AIR-COOLED SPARK-IGNITION
ENGINE SPEED: 3600 RPM
FUEL TYPE: GASOLINE OR PROPANE
PACKAGE CONTENTS: OIL FUNNEL, BATTERY, SPARK PLUG WRENCH, TOOL SET, WHEELS & HANDLE KIT, DC CHARGING CABLES, OWNER’S MANUAL
