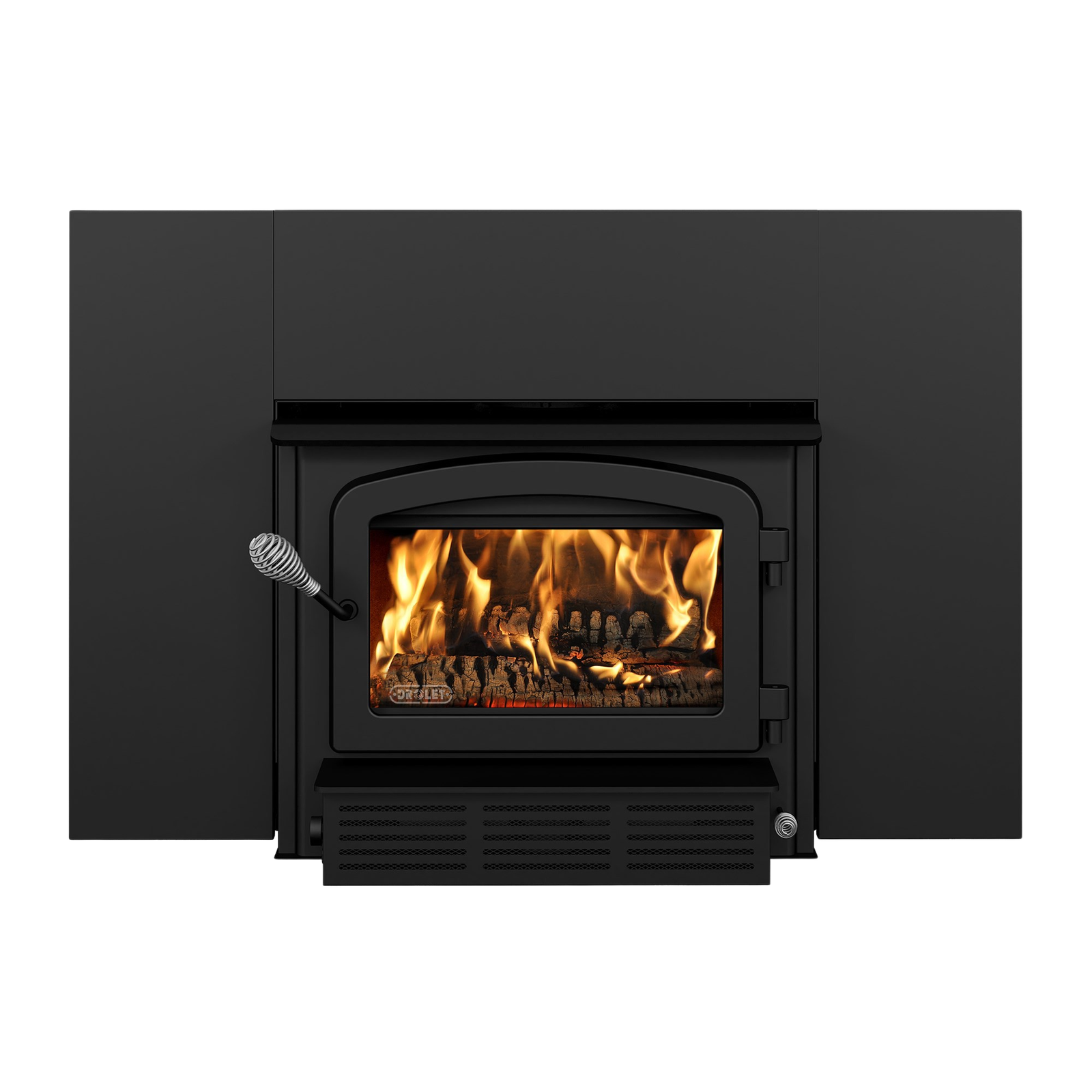

Drolet Escape 1500-I High Efficiency Wood Insert With Faceplate And Blower New

Combining performance and respect for the environment, the Escape 1500 is the perfect choice for heating homes up to 1,800 ft². With only 1.26 g/h of particulate emissions, this non-catalytic wood insert gives off up to 65,000 BTU/h while largely meeting EPA standards. The Escape 1500 is the perfect way to update your masonry fireplace, and make it efficient!

HIGHLIGHTS:
• Perfect for areas up to 1,800 sq. ft.
• Limited lifetime warranty on parts
• Brand new in box
• US orders ship from IN. Canada orders ship from QC

FEATURES:
• Burn time up to 6 hours
• Up to 18” logs
• 1.9 ft³ firebox
• Robust 5/16” steel
• EPA certified
• Limited lifetime warranty

SPECIFICATIONS:
Firebox – dimension (Height): 11 7/8″
Firebox – dimension (Width): 19 5/8″
Firebox – dimension (Depth): 13 1/2″
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: Yes
Steel thickness – body: 3/16″
Steel thickness – top: 5/16″
Fireplace opening – minimum (Height): 21 1/2″
Fireplace opening – minimum (Width): 27 1/2″
Fireplace opening – minimum (Depth): 12 3/4″
USA standard (emissions): EPA
USA standard (safety): UL 1482, UL 737
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime
Clearance – top (measured from the platform on which the appliance is installed): 84″
Clearance – combustible side mantle to unit: 9″
Clearance – combustible top mantle to unit: 27″
Clearance – combustible side wall to unit: 16″
Clearance – minimum floor protection in front of the appliance: 16″
Clearance – from the top of the insert to the shelf: 27″
Fuel type: Dry cordwood (16″ recommended)
Recommended heating area-ft²: 500 – 1,800
Overall firebox volume-ft³: 1.9
EPA loading volume-ft³: 1.44
Maximum burn time: 6 h
Maximum heat output-dry cordwood: 65,000 BTU/h (19 kW)
Overall heat output rate: 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
Average overall efficiency (EPA cribs/Douglas fir): N.A. (HHV) N.A. (LHV)
Average overall efficiency (dry cordwood): 70 % (HHV) 75 % (LHV)
Optimum overall efficiency: 78 %
Optimum heat transfer efficiency: 74 %
Average particulate emissions rate: 1.26 g/h
Average CO: 58 g/h
Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 18″
Log positioning: Loading over width
Chimney diameter: 6″
Flue outlet diameter: 6″
Type of chimney: Liner – ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet): 12′
Baffle type: High quality vermiculite
Approved for a mobile home installation: No
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 15 3/4″ x 9 3/4″
Glass air-wash system: Yes
Premium quality blower included (CFM): 144
Shipping Weight: 360 lbs
Overall dimension (Height): 21 1/4″
Overall dimension (Width): 27 1/4″
Overall dimension (Depth): 22 3/8″
Door opening – dimension (Height): 8 3/4″
Door opening – dimension (Width): 17 1/4″
PACKAGE CONTENTS: Wood Insert, 29” x 44” faceplate, Blower, Ceramic Glass, Ash Lip, Air Damper
