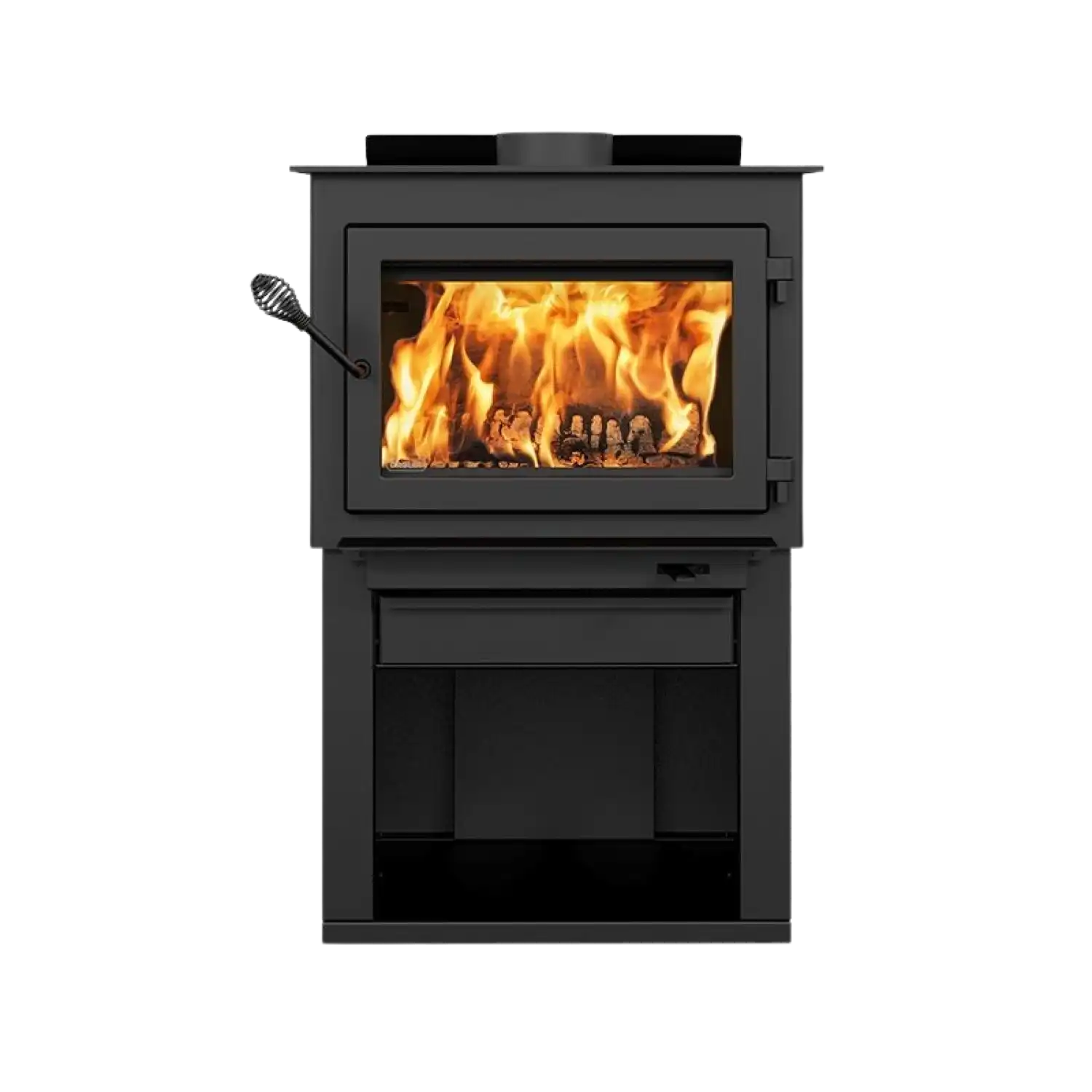

A streamlined version of the traditional wood stove, the Deco Alto is ideal for spaces up to 2,100 ft². This large non-catalytic model releases up to 75,000 BTU/h and is certified according to the latest environmental standards. Its clean lines, higher than average height and base with integrated storage space set the Deco Alto apart from other appliances on the market.
HIGHLIGHTS:
• Perfect for areas up to 2,100 sq. ft.
• Limited lifetime warranty on parts
• Brand new in box
• US orders ship from IN. Canada orders ship from QC
FEATURES:
• Up to 8 hours burn time
• Up to 20″ logs
• 2.4 ft³ firebox
• Cast iron door with adjustable hinges and ceramic glass
• Heavy duty 5/16″ steel top reinforced with a stainless steel heat shield
• EPA certified
• Proudly made in Canada
• Limited lifetime warranty
• Certified for mobile home and alcove installation
• Installation must be done according to the data and drawings detailed in the owner’s manual
SPECIFICATIONS:
Minimum chimney height: 12 feet
Baffle material: Vermiculite
Approved for alcove installation: Yes
Approved for mobile home installation: Yes
Type of door: Simple, glass with steel frame
Type of glass: Ceramic glass
Particulate emission standard: EPA / CSA B415.1-10
USA standard (Safety): UL 1482, UL 737
Canada standard (Safety): ULC-S627
Shipping weight: 390 lb (177 kg)
Model Deco: Alto (DB03220)
Type of combustion: Non-catalytic
Fuel Type: Dry Cordwood
Recommended heating area (sq. ft.): 1 500 to 2,100 ft2 (47 to 195 m2)
Total firebox volume: 2.4 ft3 (0.068 m3)
Loading volume EPA: 2.02 ft3 (0.057 m3)
Maximum burn time: 18 hours
Maximum heat output (dry cordwood): 75,000 BTU/h (22 kW)
Overall heat output rate (min. to max.): 14,800 BTU/h to 28,600 BTU/h (4.34 kW to 8.38 kW)
Average overall efficiency (Dry cordwood): 69 % (HHV) 74 % (LHV)
Optimum efficiency: 77 %
Optimum overall efficiency: 75 %
Average particulate emissions rate: 1.54 g/h (EPA / CSA B415.1-10)
Average CO: 89.4 g/h
Recommended log length: 16 in (406 mm) east-west
Maximum log length: 20 in (508 mm) east-west
Flue outlet diameter: 16 in (150 mm)
Recommended connector pipe diameter: 6 in (150 mm)
Type of chimney: ULC-S629, UL 103 HT (2100 °F)
PACKAGE CONTENTS: Wood Stove, Pedestal with log storage, Rear air deflector, Ash lip, Ash drawer, Air damper, Manual
