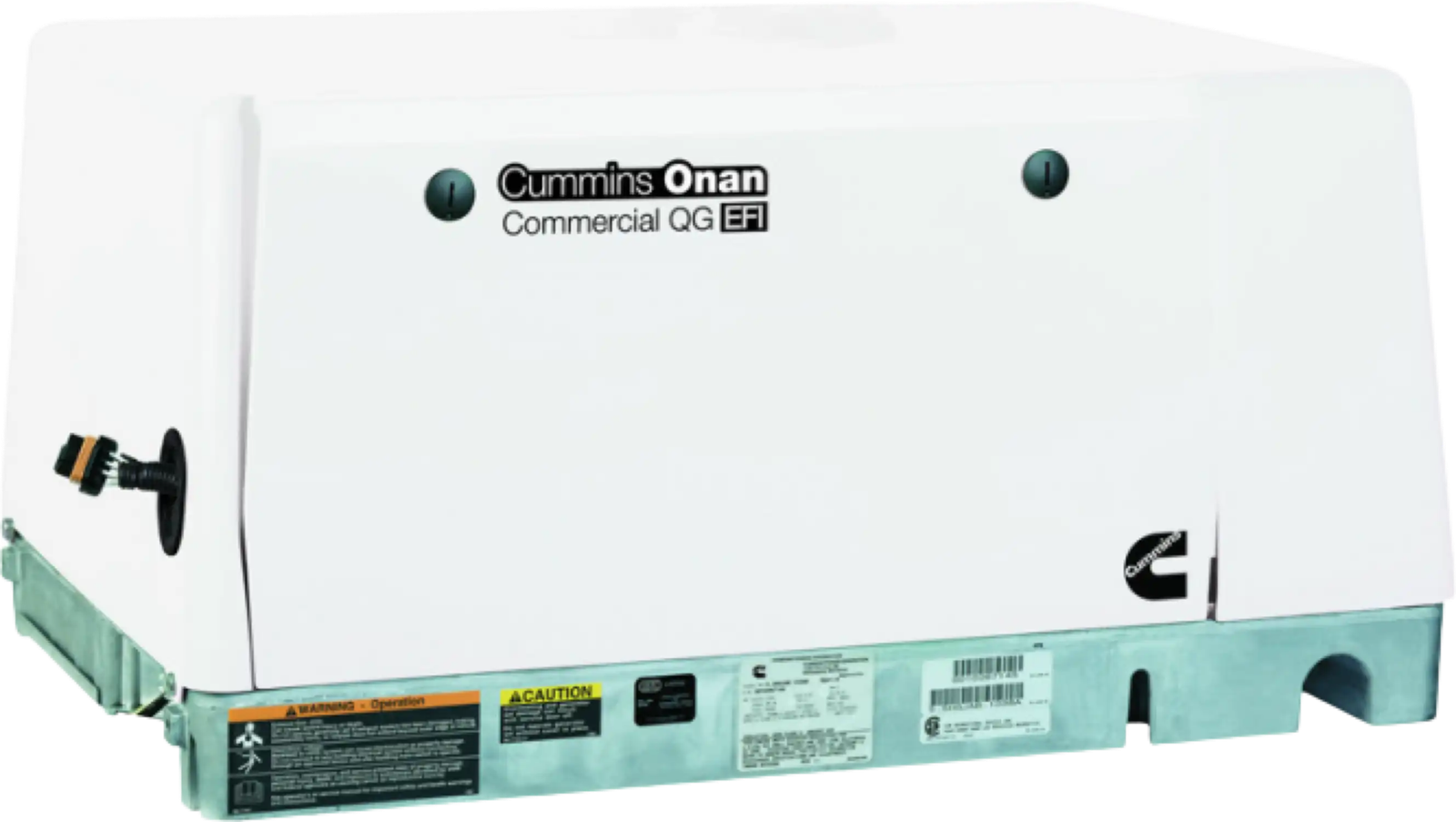

Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Gas Single Phase 120/240 Volt Air Cooled EVAP New

The Cummins Onan 5.5HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty. **Evaporative control model required for applications using a fuel tank separate from the propulsion engine **Efi units do not include fuel pump – must order kit 541-1002

HIGHLIGHTS:
• 2 year factory warranty
• Brand new in box
• Gas powered
• Authorized Cummins dealer

FEATURES:
• EVAP Model – Meets CARB Tier 3 & EPA Phase 3 Standards
• 5.5 kW QG EFI Commercial Mobile Generator EVAP (120/240V – 30A)
• Quietest and lowest vibration generator set in its class
• Designed for tough commercial applications – Runs (2) ACs
• Electronic Fuel Injection (EFI) – Improves Hot & Cold Starting
• Provides clean, smooth running under all conditions
• Cummins Onan 4-Cycle OHV V-Twin Engine (.6 Gal/H @ 1/2 Load)
• Allows for start & run without AC output to conserve fuel
• Microprocessor Controlled w/ Automatic Safety Shutdowns
• Digital voltage regulatotion provides stabilty as loads change
• Self-diagnostic capability to simplify troubleshooting
• Low oil pressure, over/under speed, and overcurrent protection
• Sound-Attenuating Enclosure w/ Thru Flow Cooling System
• Lowers noise levels while providing cross-flow cooling
• NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
• Integral Control Panel w/ Waterproof Remote Connector
• Instant one-touch stop switch & Remote disable/continuous stop capability
• 4-Point Mounting System w/ Vibration Isolators & Universal Tray
• Added Features – Auto Choke, Full-Flow Oil Filter & Long Life Fuel Filter
• 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
• Requires Cummins Onan EFI Fuel Pump Kit “541-1002” (Not Included)

SPECIFICATIONS:
Hour Meter: Yes
Circuit Breaker Size: 30 Amps
Grade Type: Professional
Engine Brand: Cummins Onan
Starting System: 12-Volt Button Start
CC: 653 CC
Consumer Engine Warranty: 2 Years
Commercial Engine Warranty: 2 Years
Engine RPM: 2400 RPM
Low Oil Alert/Shutdown: Yes
Cast Iron Sleeve: Yes
Product Category: Generator – RV
Weight: 290 Pounds
Consumer Warranty: 3 Years
Commercial Warranty: 3 Years
Product Style: RV Generator
Product Length: 33.6 Inches
Product Width: 22.2 Inches
Product Height: 16.7 Inches
Additional Model Numbers: 5.5 HGJAD-6759, A063B827 (Non-CARB Approved), A075H463 (CARB Approved)
Voltage: 120/240 Single-Phase
Frequency: 60 Hertz
Alternator: Brush
Auto Voltage Regulation: Yes
Rated Watts: 5500 Watts
Fuel Type: Gasoline
Rated Amps: 22.3 Amps
Decibel Rating @ 3m: 64
PACKAGE CONTENTS: Cummins Onan QG 5500 Gas Generator, User’s manual
