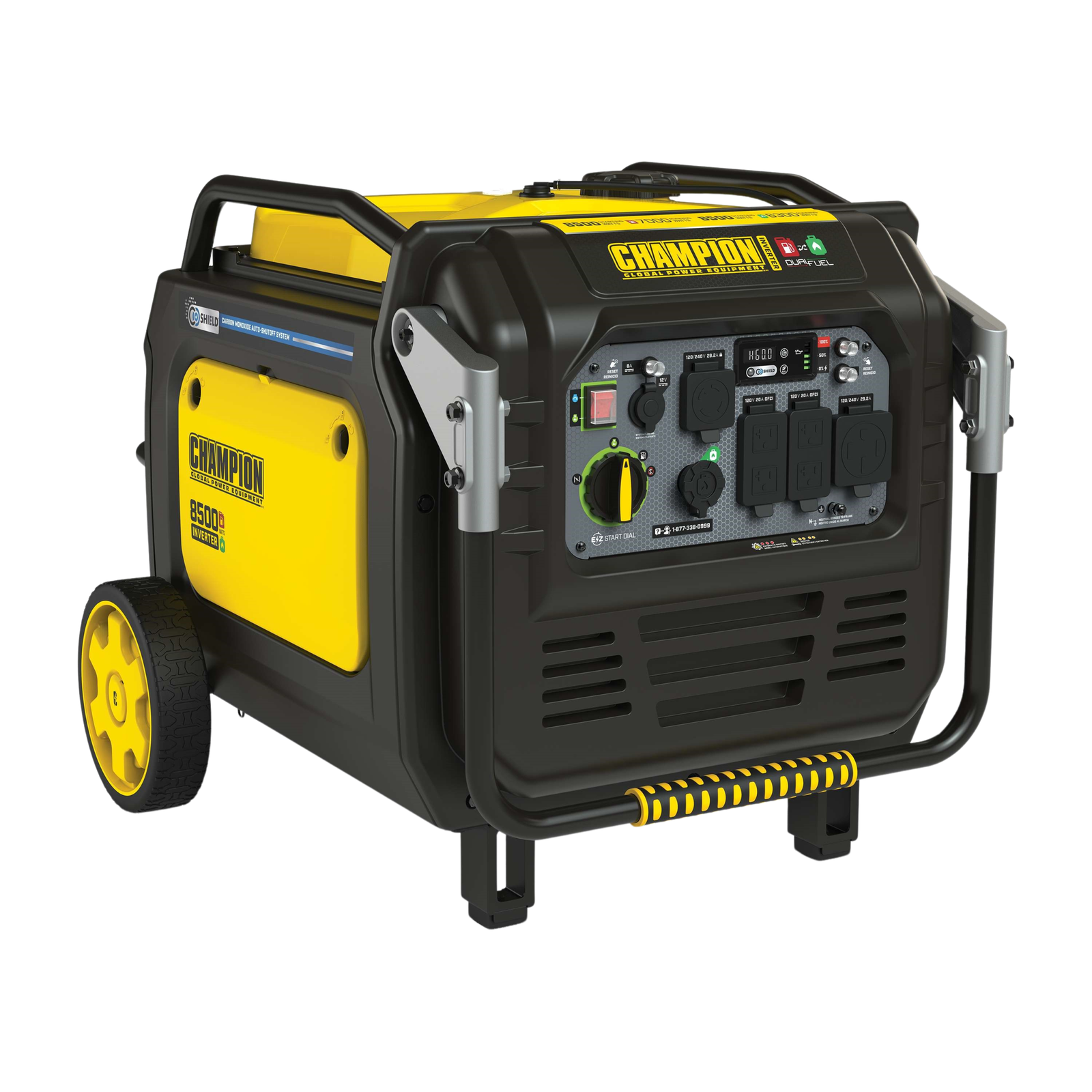

The Champion Power Equipment 8500-Watt Electric Start Dual Fuel Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials. Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start technology, extended run time, electric start with battery and an easy to read fuel gauge. With a 1.2-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61 dBA from 23 feet, which is about as loud as normal speech. The no-tool access panel and oil drain tube allow for easy maintenance. Operate your Dual Fuel inverter right out of the box on gasoline or propane, and easily switch fuels with the EZ Start dial. When the 5.33-gallon tank of gasoline is full, the 420cc Champion engine produces 8500 starting watts and 7000 running watts and will run for up to 14 hours at 25% load. When using a 20-pound propane tank, it produces 8500 starting watts and 6300 running watts and will run for up to 12 hours at 25% load. *Not for sale in California*
HIGHLIGHTS:
• Brand new in box & manufacturer direct
• 3 year factory warranty
• Electric start
• Authorized Champion dealer
• Fast processing with free shipping
PLUG TYPES:
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (L14-50R)
• ×4 120v 20 Amp Standard Receptacle (5-20R)
• ×1 120/240v 30 Amp Twist Lock (L14-30R)
• ×1 120v/240v 50 Amp Heavy Duty Outlet (L14-50R)
FEATURES:
• Dual Fuel: Operate your 8500-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system plus the EZ Start Dial simplifies startup.
• Quiet Technology and Extended Run Time: 61 dBA is great for RVs, tailgating, or camping with 8500 starting watts, 7000 running watts and up to 14 hours run time on gasoline, and 6300 running watts and up to 12 hours on propane.
• Electric Start with Intelligauge: Power up the 420cc Champion engine with the handy rocker switch (battery included) and use Intelligauge to monitor voltage, frequency and operating hours with ease.
• Clean Power for Sensitive Electronics: (1) 120/240V 29.2A 15-50R outlet, (1) 120/240V 29.2A L14-30R locking outlet, (2) 120V 20A GFCI household duplex outlets with clean power (less than 3% THD), and a 12V regulated automotive-style outlet.
• Champion Support: Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts.
SPECIFICATIONS:
Portable Generator Technology: Dual Fuel,CO Shield®
Gasoline Starting Watts (W): 8500
Gasoline Running Watts (W): 7000
Propane Starting Watts (W): 8500
Propane Running Watts (W): 6300
Gasoline Starting Amps at 120V (A): 70.80
Gasoline Starting Amps at 240V (A): 35.40
Gasoline Running Amps at 120V (A): 58.30
Gasoline Running Amps at 240V (A): 29.20
Propane Starting Amps at 120V (A): 70.80
Propane Starting Amps at 240V (A): 35.40
Propane Running Amps at 120V (A): 52.50
Propane Running Amps at 240V (A): 26.30
Volts (V): 120/240
Frequency (Hz): 60
Outlets: GFCI 120V Duplex (5-20R) (2),120/240V Locking (L14-30R),120/240V (14-50R),12V DC Automotive
GFCI Outlets: Yes
Covered Outlets: Yes
Gasoline Run Time at 1/4 Load (h.): 14.00
Propane Run Time at 1/4 Load (h.): 12.00
Noise Level (dBA): 61.00
Inverter: Traditional
Parallel Capability: No
DC Operation: Yes
Voltmeter: Intelligauge with Power Meter
Battery: Yes
Power Type: Gasoline
Start Type: Recoil, Electric
Engine Brand: Champion
Engine Size (cc): 420
Engine Speed (RPM): Variable
Engine Type: 4-stroke
Fuel Type: Gasoline,Propane (LPG)
Fuel Gauge: Analog
Gasoline Capacity (gal.): 5.33
Gasoline Tank Material: Steel
Engine Oil Type: 10W-30
Engine Oil Capacity (qt.): 1.20
Engine Oil Included: Yes
Low Oil Shut-off: Yes
Wheels: Yes
Wheel Type: Solid
Wheel Diameter (in.): 9.50
PGMA G300-2018 Compliant: Yes
EPA Certified: Yes
Prop 65 Warning Required: Yes
CARB Compliant: No
Product Dimensions: 33.40″ L x 29.10″ W x 26″ H
Product Weight: 213.90 lbs.
Package Dimensions: 37.80″ L x 26.40″ W x 24.20″ H
Package Weight: 236.40 lbs.
PACKAGE CONTENTS: Champion 201175 Dual Fuel Inverter Generator, USB Adapter, Propane (LPG) Hose, Oil Funnel, Engine Oil, User’s Manual
