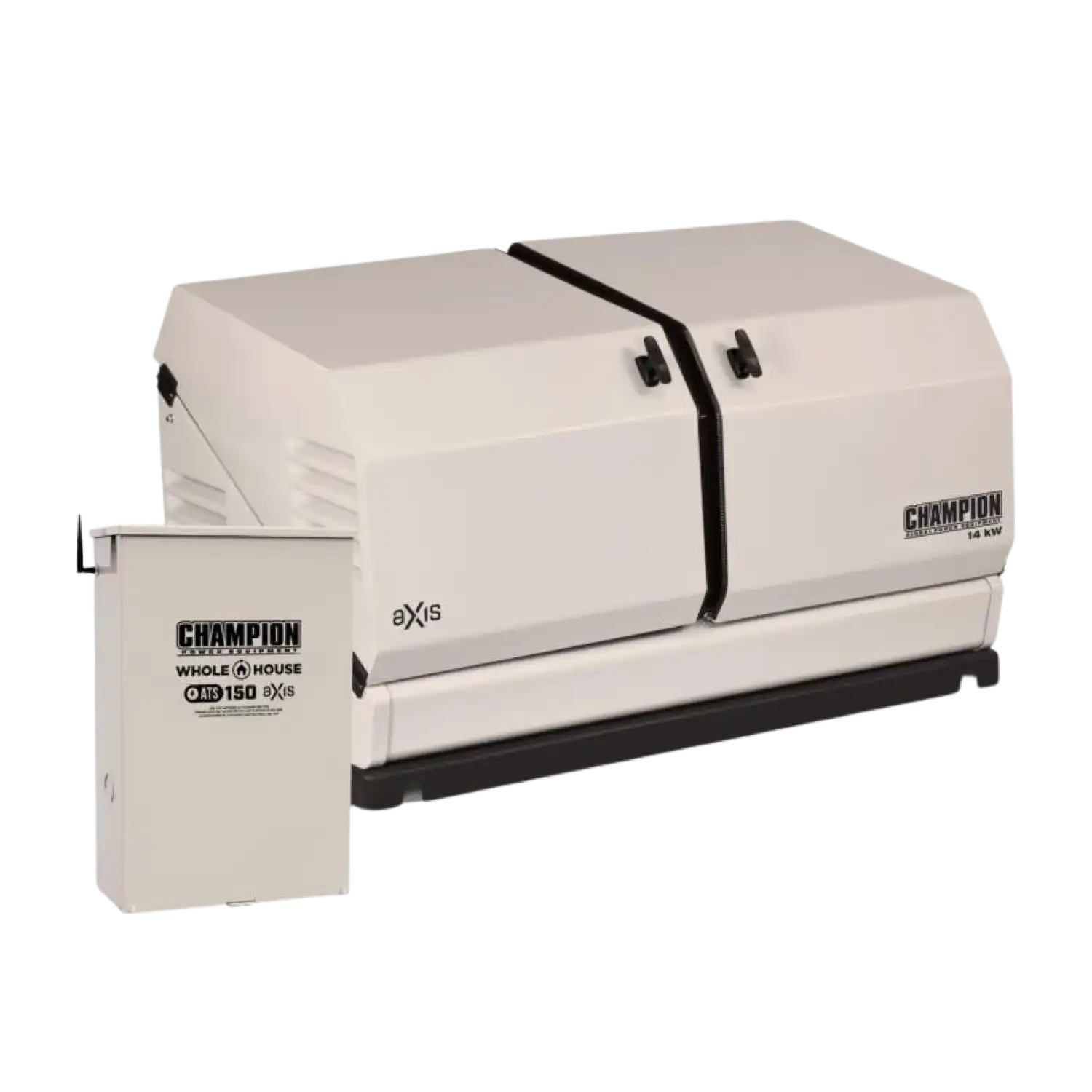

Champion 100836 14kW Home Standby Generator with 150 Amp Transfer Switch New

Champion’s 14-kW aXis Home Standby Generator System includes a 150-Amp aXis automatic transfer switch. This fully automatic system manages your home’s loads while providing quietest-in-class sound. *Not for sale in California*

HIGHLIGHTS:
• 10 year manufacturer’s limited warranty
• Ships directly from Champion out of CA
• Fast processing with free shipping
• Authorized Champion dealer

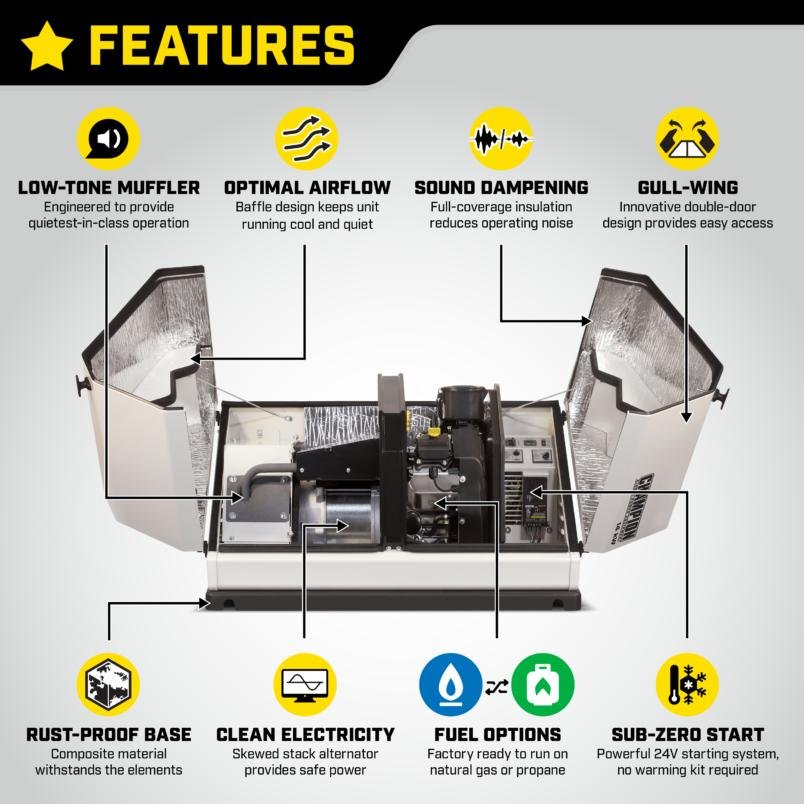

FEATURES:
• Whole House Power- The aXis ATS150 Whole House Automatic Transfer Switch provides managed power for your home with wi-fi setup and the ability to manage unlimited high demand loads using 4 priority levels
• Quietest-in-Class- Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level
• Reliable- 24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests
• Powerful- The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
• Champion Support- Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts
• Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US

SPECIFICATIONS:
ETL Listing: ETLus
EPA Certified: Yes
Switch Amps: 150A
Switch Volts: 120/240
Switch Type: Whole House
Switch Circuits: Whole Service
Switch Poles: 2
Load Management: Yes
Service Entry Rated: Yes
Switch Enclosure: NEMA 3R
Length: 49 in.
Width: 29 in.
Height: 29 in.
Weight: 439 lb.
Propane Rated Watts: 14000W
Natural Gas Rated Watts: 12500W
Propane Rated Amps at 120V: 116.7A
Propane Rated Amps at 240V: 58.3A
Natural Gas Rated Amps at 120V: 104A
Natural Gas Rated Amps at 240V: 52A
Rated Volts: 120/240
Rated Frequency: 60Hz
Phase: Single
Propane Fuel Consumption at 1/2 Load: 1.6  gal/h
Propane Fuel Consumption at Full load: 2.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load: 116.5 ft3/h
Natural Gas Fuel Consumption at Full Load: 180.1 ft3/h
Main Line Circuit Breaker: 65A
Starting System Automatic: 24V
Operational Volume: 62 dBA
Cooling System: Air Cooled
AC Ton Rating: 5T
Generator Enclosure: Steel
Generator Mounting Pad: Composite
Engine Brand: Champion
Engine Size: 754cc
Engine Type: 4-stroke
Engine Speed: 3600
Fuel Type: Propane (LPG), Natural Gas (NG)
Engine Oil Type: Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity: 1.7 qt.
Engine Oil Included: No
Low Oil Shut-Off: Yes
PACKAGE CONTENTS: 14kw Standby Generator, 150 Amp Transfer Switch, All weather composite mounting pad, HSB Enclosure Keys, LPG Jets, Jet Change Tool, Oil Drain Pan, Battery Cables and Hardware, Flexible Fuel Line, User’s Manual
