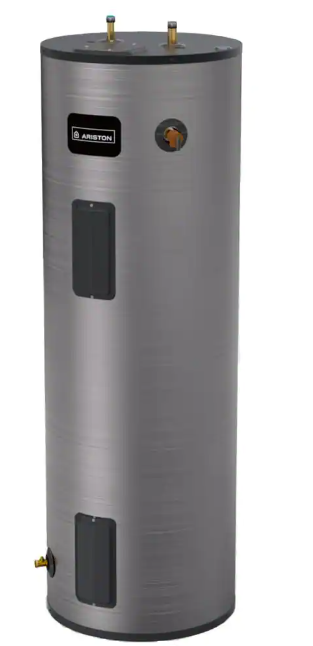

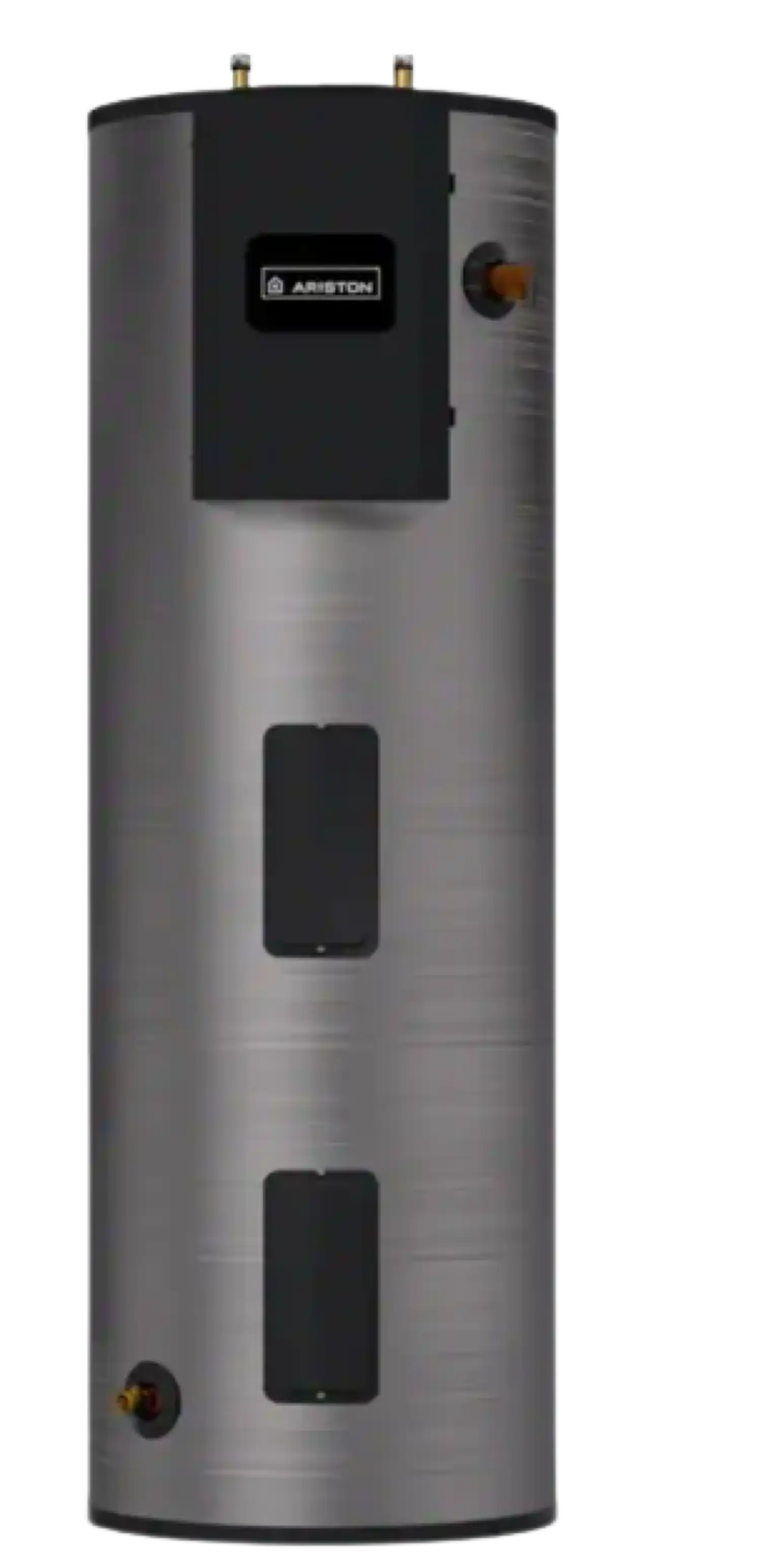

Ariston ARIEC100C3W165 100 Gallon 16,500 Watt Electric Water Heater New

Ariston’s 3-element commercial stainless steel electric water heater allows for flexibility with multiple wiring configurations. The 3-elements provide quicker recovery between domestic hot water draws with a single or 3-phase options, installation can be flexible. Stainless steel water heaters are longer lasting and more durable than glass-lined tanks.

HIGHLIGHTS:
• 10 year limited factory warranty
• Brand New in Box
• Ships directly from Ariston out of MA
• Authorized Ariston dealer

FEATURES:

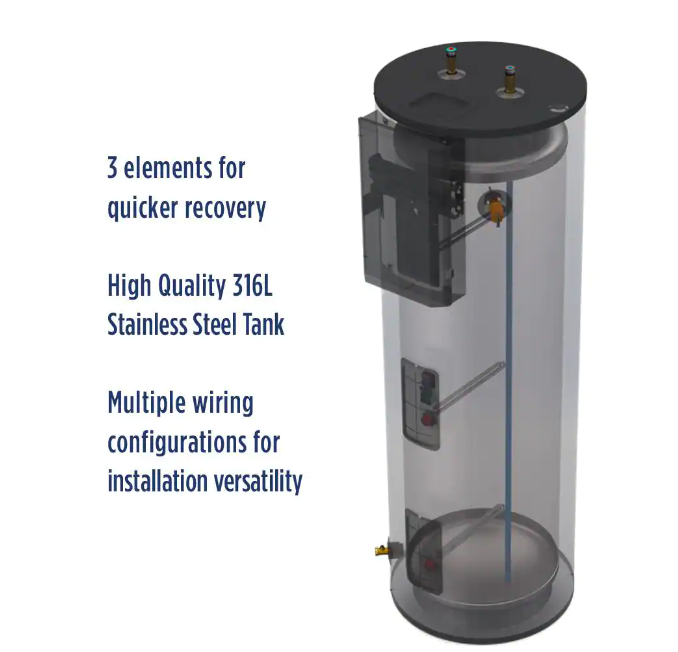

• 3-elements provide quicker recovery between hot water draws
• 3-elements provide additional capacity for longer continuous operation
• Limited 10-year warranty on tank
• Multiple wiring configurations for installation versatility to meet any job requirement
• Terminal block for ease of field wiring
• Internal fuse block for added protection
• Durable steel enclosure-hinge cover provides easy access to internal fuses and wiring
• Easy wiring customer connection
• 3-phase or single phase installation options: simultaneous and non-simultaneous operation options
• 240-Volt 18.8 Amp to 32.4 Amp for 3-phase or 56.4 for single phase

SPECIFICATIONS:
Minimum Temperature (F): 135 °F
Nominal Tank Capacity (gallons): 100 gal
Number of Elements: 3
Product Weight (lb.): 220 lb
Recovery Rate at 100F Rise (gallons/hour): 19

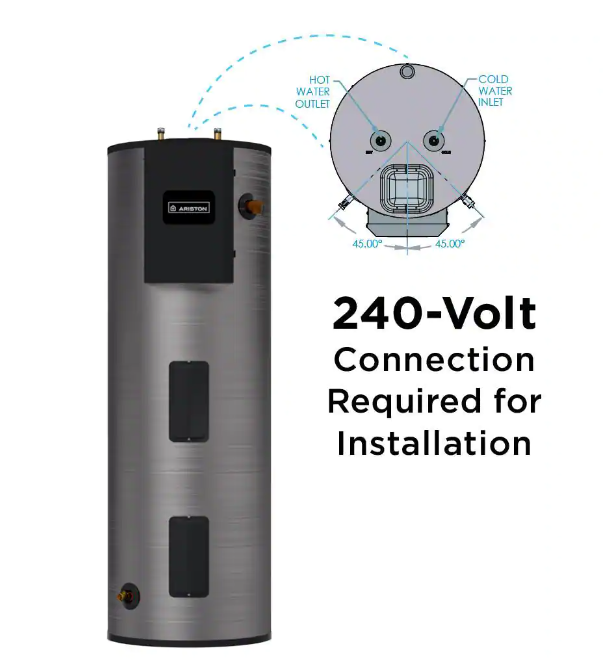

Required Volt Connection: 240 volt
Tank Lining Material: Stainless Steel
Water Heater Features: Temperature Pressure Relief Valve
Wattage (watts): 16500 W
Certifications and Listings: AHRI Certified, UL Certified
Kilowatt: 16.5

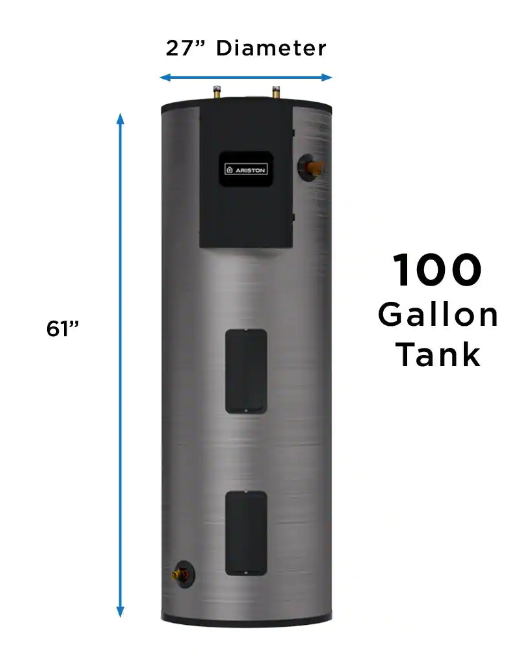

Product Depth (in.): 27 in
Product Height (in.): 61 in
Product Width (in.): 27 in
Tank Valve Size (in.): 0.75 in
Water Connection Size (in.): 3/4 in
Amperage (amps): 32.4 A
Application Type: Commercial
Electricity Phase: Single Phase, Three Phase
First Hour of Delivery (gallons/hr): 84
Fuel Type: Electric
Household Size: 5+
Indoor/Outdoor: Indoor
Maximum Temperature (F): 181 °F
PACKAGE CONTENTS: 100 Gallon Electric Water Heater, User Manual
